Watts 0206031 - 1170C-UT-M2-3/4 - 3/4" Threaded NPT Hot Water Temperature Mixing Valves, Temperature Range 90°F to 120°F, Maximum Pressure 150PSI
Watts 0206031 - 1170C-UT-M2-3/4 - 3/4" Threaded NPT Hot Water Temperature Mixing Valves, Temperature Range 90°F to 120°F, Maximum Pressure 150PSI
Couldn't load pickup availability
Ships in 2-3 days (Free Shipping)
Watts 0206031 - 1170C-UT-M2-3/4 - 3/4" Threaded NPT Hot Water Temperature Mixing Valves, Temperature Range 90°F to 120°F, Maximum Pressure 150PSI.

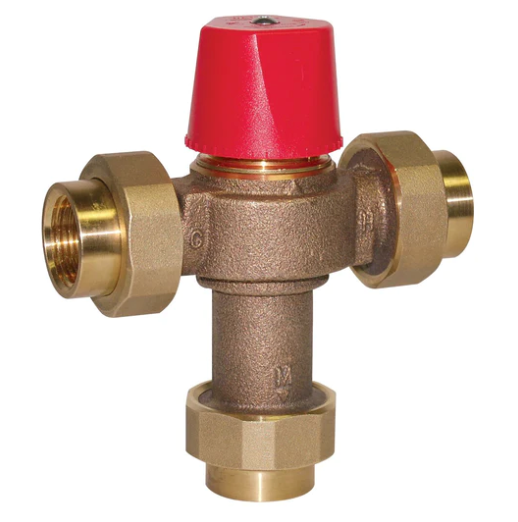

The watts 1170C-UT-M2-3/4 Series 1170C-M2 Hot Water Temperature Control Valves are used in commercial, residential, and institutional applications to reduce the temperature of the hot water supply. It consists of a bronze body construction with union thread, union solder, PEX or CPVC end connections, integral check valves, copper thermostat assembly, stainless steel disc and spring, Buna-N or EPDM O-rings, and Udel pistons. Series 1170C-M2 features a double-throttling design that combines the control of hot and cold water to provide a sensitive response to changes in water temperature passing through the mixing chamber. Temperature range is 90°F to 120°F (32°C to 49°C). Maximum Pressure is 150psi (10 bar).
Product Features:
- Check valves and filter gaskets in both hot and cold water inlets protect against cross flow
- Flow of mixed water is safely restricted in the event that cold water supply is compromised
- Solid wax hydraulic principle thermostat controls both hot and cold water, and is engineered to ensure dependable mixing of hot and cold fluids
- Double throttling design provides sensitive response to changes in water temperature.
- Series: 1170C-UT-M2-3/4
- SKU: 0206031
Product Specs:
