Watts
Watts 0154800 - 40L-100-210-1 - 1" Bronze Automatic Reseating Temperature & Pressure Relief Valve, 100 PSI, 210 Degree F, with Test Lever, 3" Extended Thermostat
Watts 0154800 - 40L-100-210-1 - 1" Bronze Automatic Reseating Temperature & Pressure Relief Valve, 100 PSI, 210 Degree F, with Test Lever, 3" Extended Thermostat
Couldn't load pickup availability
Ships in 2-3 days (Free Shipping)
Watts 0154800 - 40L-100-210-1 - 1" Bronze Automatic Reseating Temperature & Pressure Relief Valve, 100 PSI, 210 Degree F, with Test Lever, 3" Extended Thermostat.

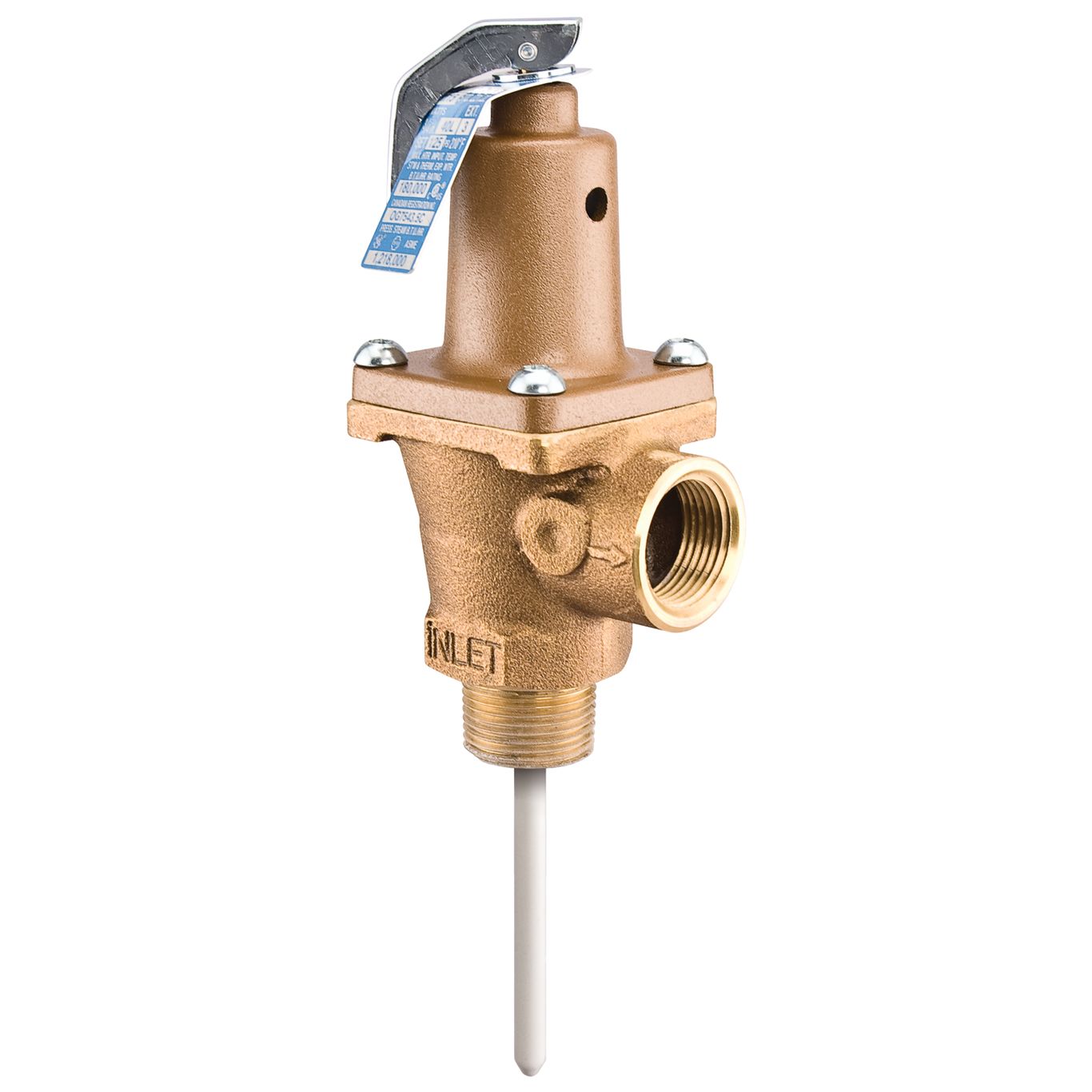

This Watts 0154800 - 40L-100-210-1 - 1" bronze automatic reseating temperature and pressure relief valve with a 3 inch thermostat is installed directly in tank tapings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a bronze body with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees (99 degrees C) and the pressure relief is 100 psi.
Product Features:
- Non-mechanical seat to disc alignment.
- 3 Inch thermostat length.
- Thermo-bonded thermostat.
- Tamper resistant bonnet screws.
- Thermostat is accurate and proven.
- SKU: Watts 0154800
- Model Series: 40L-100-210-1
Technical Specs:
| Specifications | |
|---|---|
| Body Material | Bronze |
| Brand | Watts |
| EAN | 098268009651 |
| Inlet Connection Size | 1 IN |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | NO |
| Maximum Temperature-Fahrenheit | 210 |
| Maximum Working Pressure-PSI | 150 |
| Outlet Connection Size | 1 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Part Number | 0154800 |
| Pressure Range | 75 to 150 PSI |
| Pressure Relief Setting-PSI | 100 |
| Pressure Steam Discharge Capacity | 1,481,000 BTU per hour |
| Protection Type | Temperature And Pressure |
| Series | 40L |
| Shank Length | Does Not Apply To Product |
| Temperature Relief-Fahrenheit | 210 |
| Temperature Steam Discharge Capacity | 180,000 BTU per hour |
| Thermostat Probe Length | 3 IN |
Product Specs:
