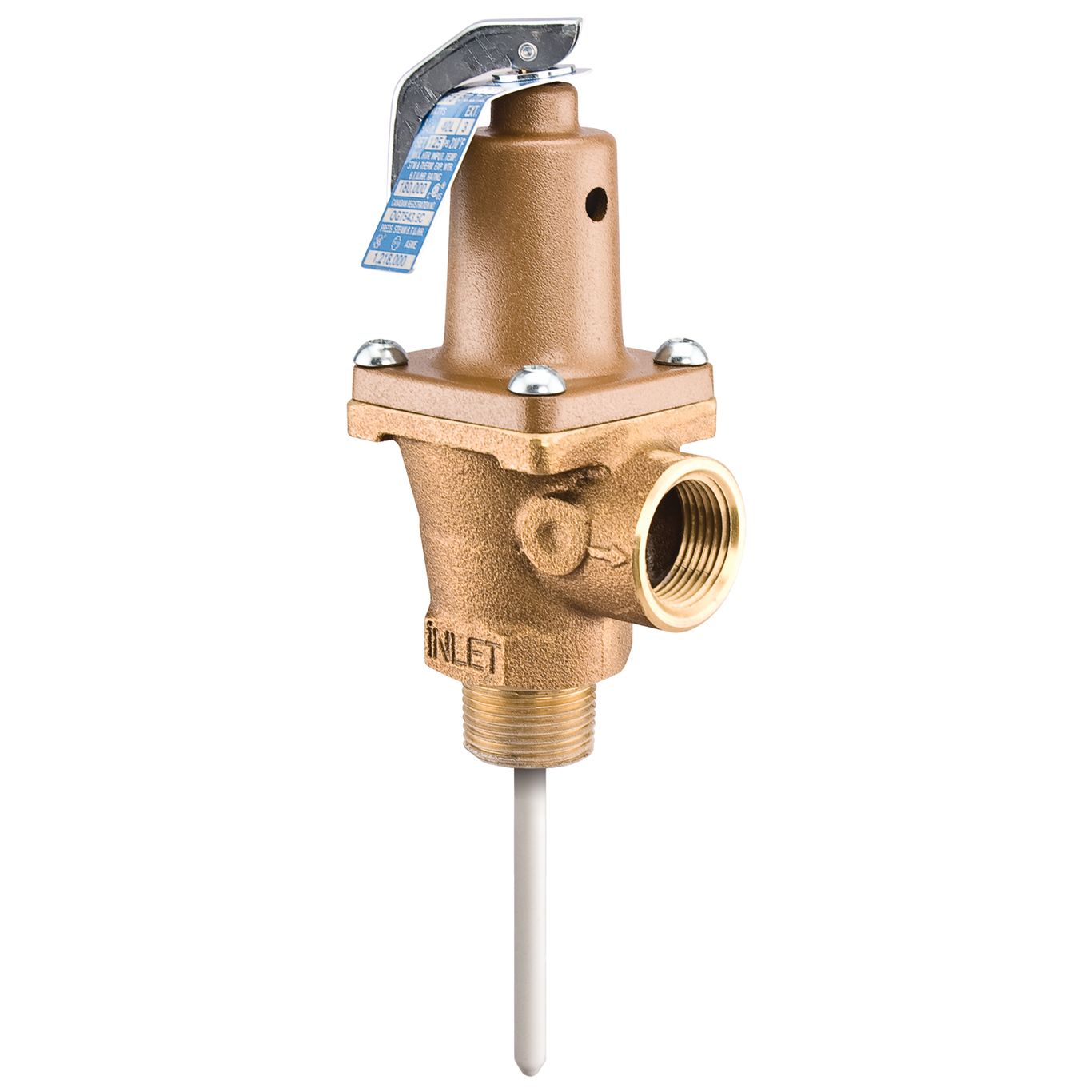

Watts 0152920 - 40L-075-210-1 - 1" Bronze Automatic Reseating Temperature & Pressure Relief Valve, 75 PSI, 210 Degree F, Test Lever, 3" Extended Thermostat

Watts 0152920 - 40L-075-210-1 - 1" Bronze Automatic Reseating Temperature & Pressure Relief Valve, 75 PSI, 210 Degree F, Test Lever, 3" Extended Thermostat

Regular price $440.00 CAD
Regular price Sale price $440.00 CAD
Sale Sold out
Shipping calculated at checkout.

Ships in 1-2 days (Free Shipping)

Watts 0152920 - 40L-075-210-1 - 1" Bronze Automatic Reseating Temperature & Pressure Relief Valve, 75 PSI, 210 Degree F, Test Lever, 3" Extended Thermostat.

  • 3" thermostat length.
  • Thermostat is accurate and proven.
  • Non-mechanical seat to disc alignment.
  • Tamper resistant bonnet screws.
  • Thermo-bonded thermostat.
  • SKU: Watts 0152920
  • Model Series: 40L-075-210-1

Technical Specs:

Specifications
Body Material Bronze
Brand Watts
EAN 098268009576
Inlet Connection Size 1 IN
Inlet Connection Type Male Threaded
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 210
Maximum Working Pressure-PSI 150
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0152920
Pressure Range 75 to 150 PSI
Pressure Relief Setting-PSI 75
Pressure Steam Discharge Capacity 1,155,000 BTU per hour
Protection Type Temperature And Pressure
Series 40L
Shank Length Does Not Apply To Product
Temperature Relief-Fahrenheit 210
Temperature Steam Discharge Capacity 180,000 BTU per hour
Thermostat Probe Length 3 IN
