Watts 0121580 - LFWDS-E220 - 3/4" Lead Free FloodSafe Electric Water Shutoff (220V)
Watts 0121580 - LFWDS-E220 - 3/4" Lead Free FloodSafe Electric Water Shutoff (220V)
Couldn't load pickup availability
Ships in 1-2 days (Free Shipping)
Watts 0121580 - LFWDS-E220 - 3/4" Lead Free FloodSafe Electric Water Shutoff (220V)

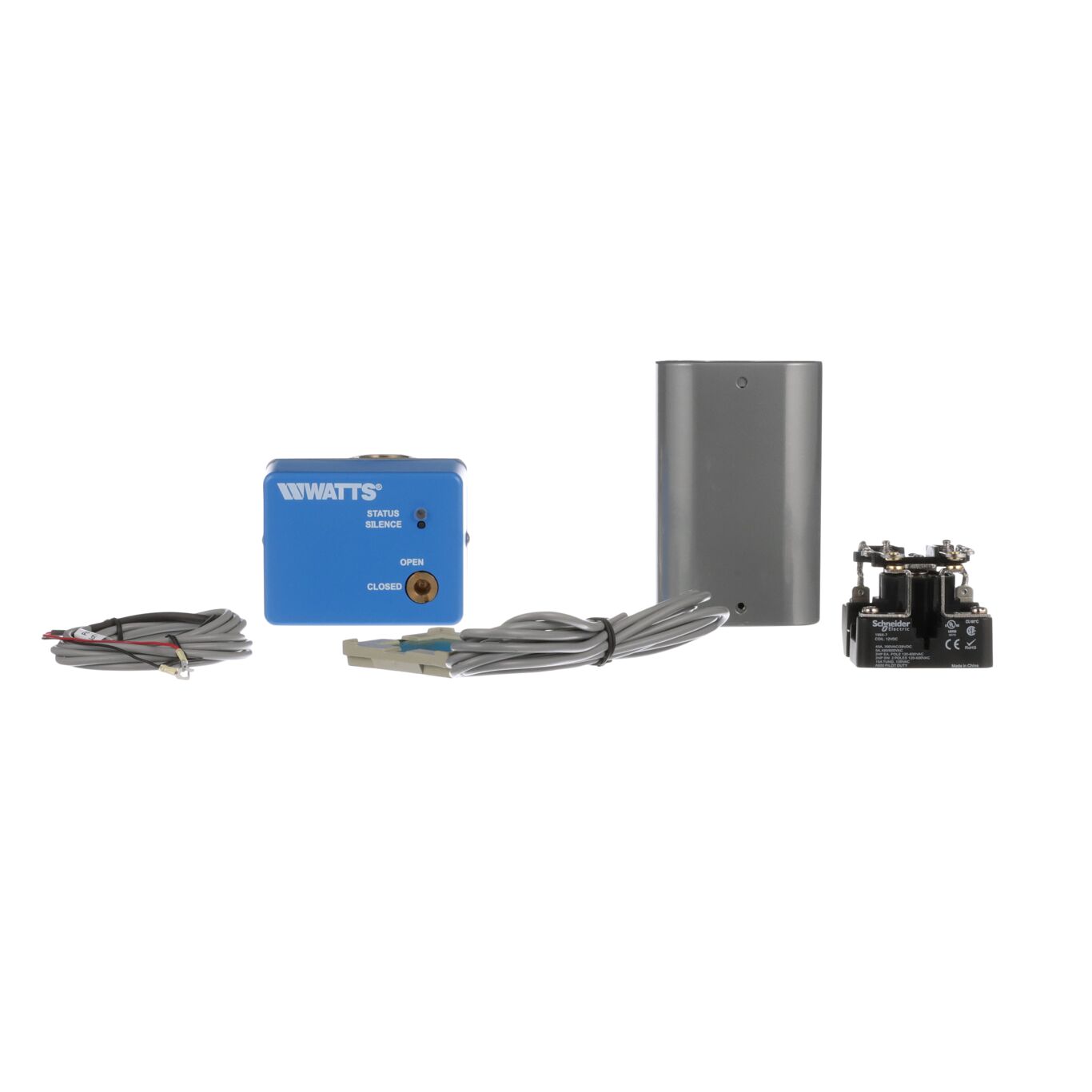

This Watts 0121580 FloodSafe® water detector shutoff protects the homeowner from catastrophic damage in the event of a water heater leak by using state of the art water detection technology. It detects the presence of water on the floor beneath the water heater and will automatically shut off the water supply and power source to the water heater. This 3/4 inch safety valve detector is easily testable and resettable by the contractor or home owner to ensure proper operation. It consists of an integral control unit, a water dam, power supply, power cut-out module with electric 220 V pilot, and water detection pad. An optional battery back-up maintains normal usage up to 3 days.
Product Features:
- Provides contacts for monitored alarm detection systems
- Easily tested and reset to assure proper operation
- Optional battery backup maintains normal operation for up to three days during power outages
- No terminals to corrode or to impair operation
- SKU: LFWDS-E220
- Model: 0121580
Product Specs:
| Body Material | Lead Free Cast Copper Silicon Alloy |
| Body Pattern | Straight |
| Bonnet Type | No Bonnet |
| Brand | Watts |
| Control Type | Electric Actuators |
| EAN | 098268587074 |
| Epoxy Coating Type | None |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Size-Metric | 20 MM |
| Inlet Connection Type | Female Threaded |
| Inlet Thread Type | FPT |
| Lead Free | YES |
| Maximum Pressure-PSI | 150 |
| Maximum Temperature-Fahrenheit | 210 |
| Minimum Temperature - Celsius | 0.50 |
| Minimum Temperature-Fahrenheit | 33 |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | FPT |
| Part Number | 0121580 |
| Series | LFWDS |
| Stem Shaft Material | Brass |
| Stem Type | Non Rising |
| Valve Style | Swing Check |
