Watts 0066100 - 100XL-150-3/4 - 3/4" Self Closing Temperature & Pressure Relief Valve, 150 PSI

Watts 0066100 - 100XL-150-3/4 - 3/4" Self Closing Temperature & Pressure Relief Valve, 150 PSI

$62.00 CAD
$62.00 CAD
Sale Sold out
Shipping calculated at checkout.

Ships in 1-2 days (Free Shipping)

Watts 0066100 - 100XL-150-3/4 - 3/4" Self Closing Temperature & Pressure Relief Valve, 150 PSI.

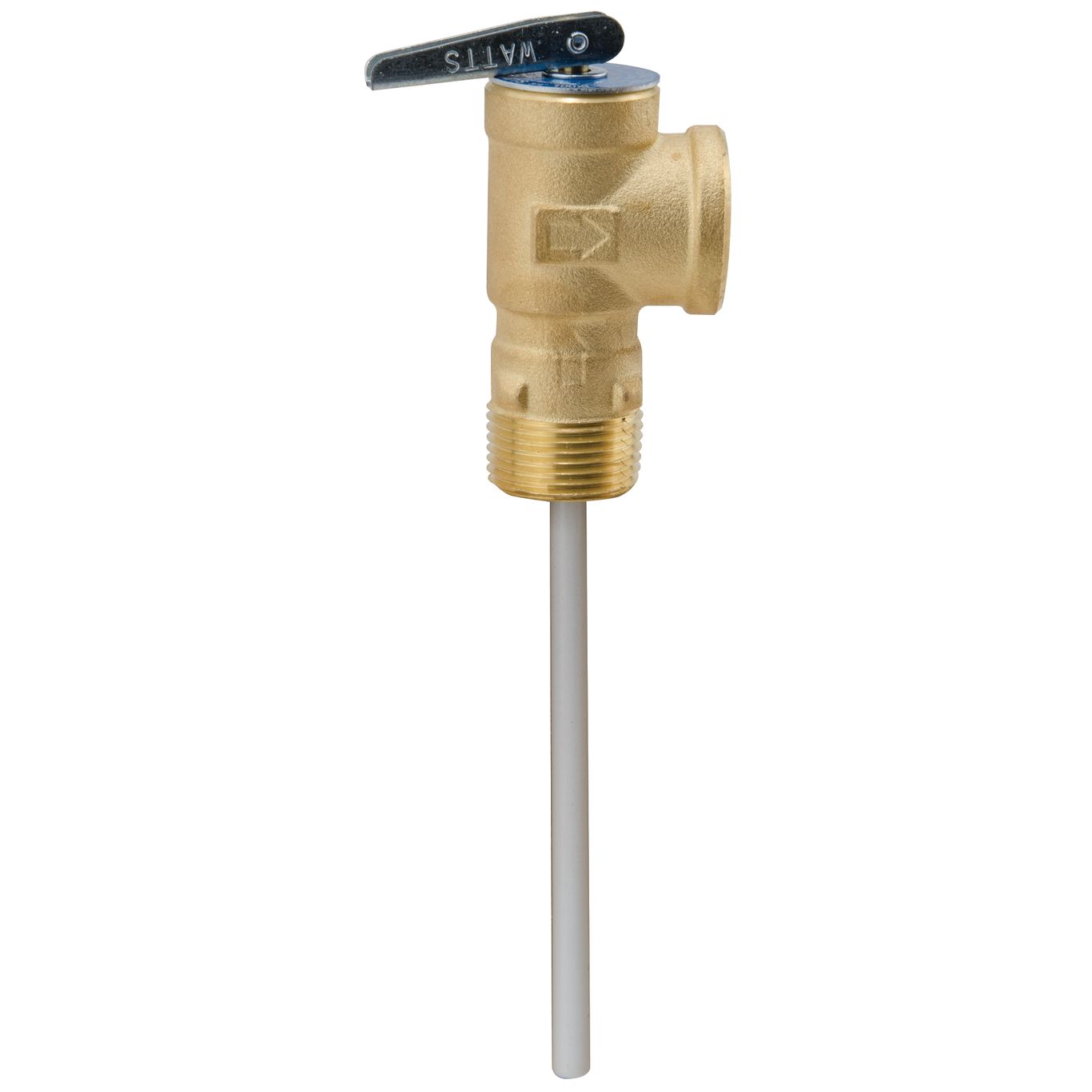

3/4" Brass Self Closing Temperature and Pressure Relief Valve, 150 psi, 210 degree F, Test Lever, Extension Thermostat.

This 3/4 inch temperature and pressure relief valve is used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. This valve is ASME rated and CSA listed. Temperature relief is 210 degree F (99 degree C) temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model 100XL-8 is also available with 8 inch (200mm) extension thermostat. Series 100XL is ASME rated and CSA listed. Temperature relief is 210 degree F (99 degree C), Pressure relief range is 75 to 150psi (5.2 to 10.3 bar). Standard pressure settings are 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).

Product Features:

  • Brass body construction
  • Required safety device on all water heaters
  • Temperature relief is 210 degree F (99 degree C)
  • Prevents water heater from blowing up
  • Includes test lever and stainless steel spring
  • ANSI Z21.22 certified
  • Features unique thermostat with special thermo-bonded coating
  • ASME rated, CSA Listed
  • Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr
  • Model: 100XL-150-3/4
  • SKU: 0066100

Product Specs:

Body Material Brass
Brand Name Watts
Buy American Act Compliant YES
EAN 098268000016
GDS Status Registered
Inlet Connection Size 3/4 IN
Inlet Connection Type Male Threaded
Inlet Thread Type NPT
Lead Free NO
Maximum Temperature-Fahrenheit 210
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0066100
Pressure Range 75 to 150 PSI
Pressure Relief Setting-PSI 150
Protection Type Temperature And Pressure
Series 100XL
Shank Length 1 1/8 IN
Temperature Relief-Fahrenheit 210
Temperature Steam Discharge Capacity 105,000 BTU per hour
Thermostat Material Copper
Thermostat Probe Length 3 IN
