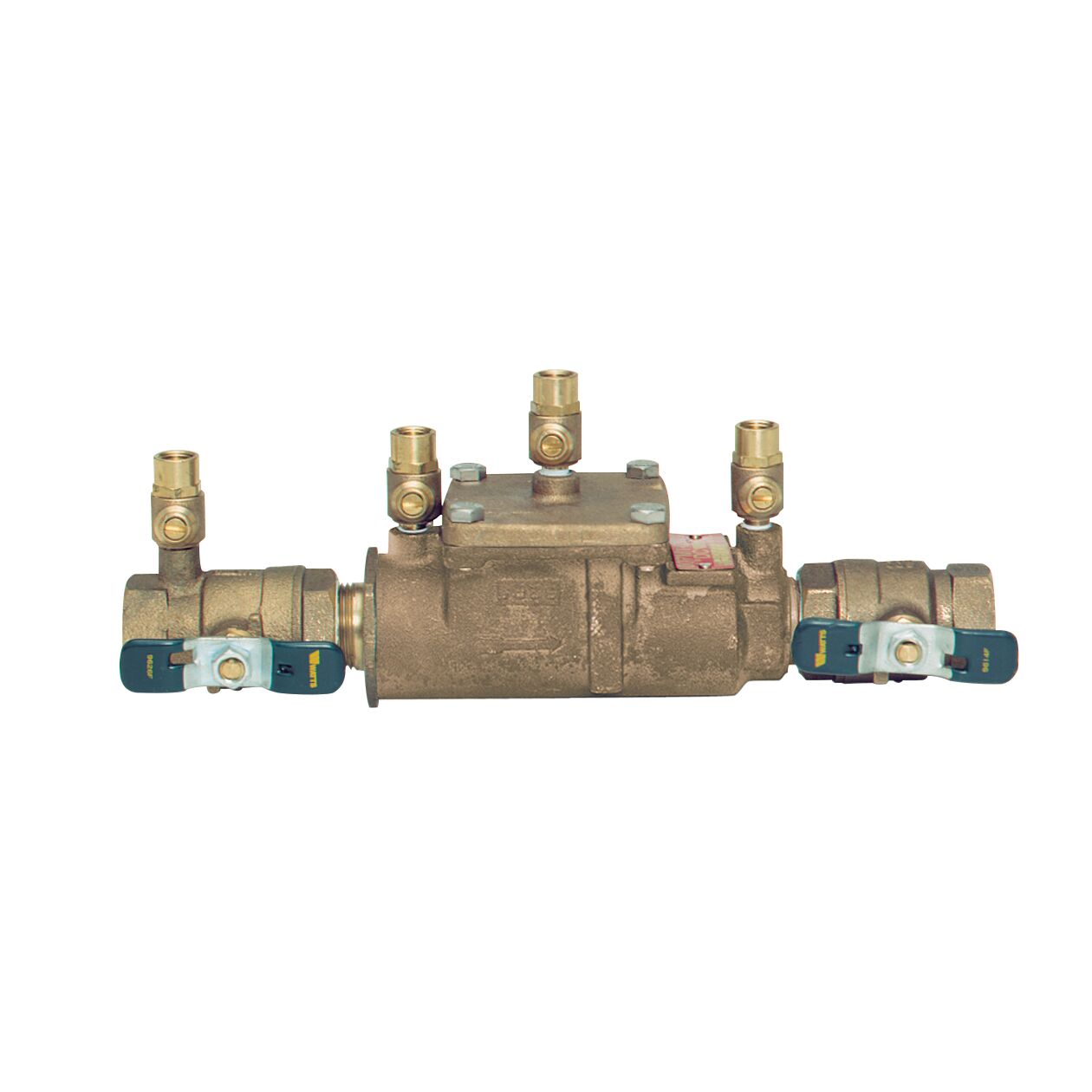

Watts 0062616 - 007M2-QT-112 - 1-1/2" DCVA Bronze Double Check Valve Assembly Backflow Preventer

Ships in 1-2 days (Free Shipping)

Watts 0062616 - 007M2-QT-112 - 1-1/2" DCVA Bronze Double Check Valve Assembly Backflow Preventer.

This 1 1/2 inch double check valve backflow preventer assembly is designed to prevent the backflow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with a single access cover for in-line repairs. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards and for contaminants at the service line entrance. This assembly consists of a bronze body construction, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks, two in-line independent positive seating check modules, captured springs, and replaceable check discs and seats.

Product Features:

• Bronze body for durability
• Modular compact design
• Replaceable seats and seat discs
• Top entry

Product Specs:

• Flyer - Freeze Detection for Backflow Protection
• Installation Instructions - 007, LF007 Sizes 1/2 - 2 IN
• Installation Instructions - Freeze Sensor Connection Kit - Watts and FEBCO
• Specification Sheet - 007 Sizes 1/2 - 2 IN
• Specification Sheet - 007 Sizes 1/2 - 2 IN (French)
• Specification Sheet - 007 Sizes 1/2 - 2 IN (Spanish)
