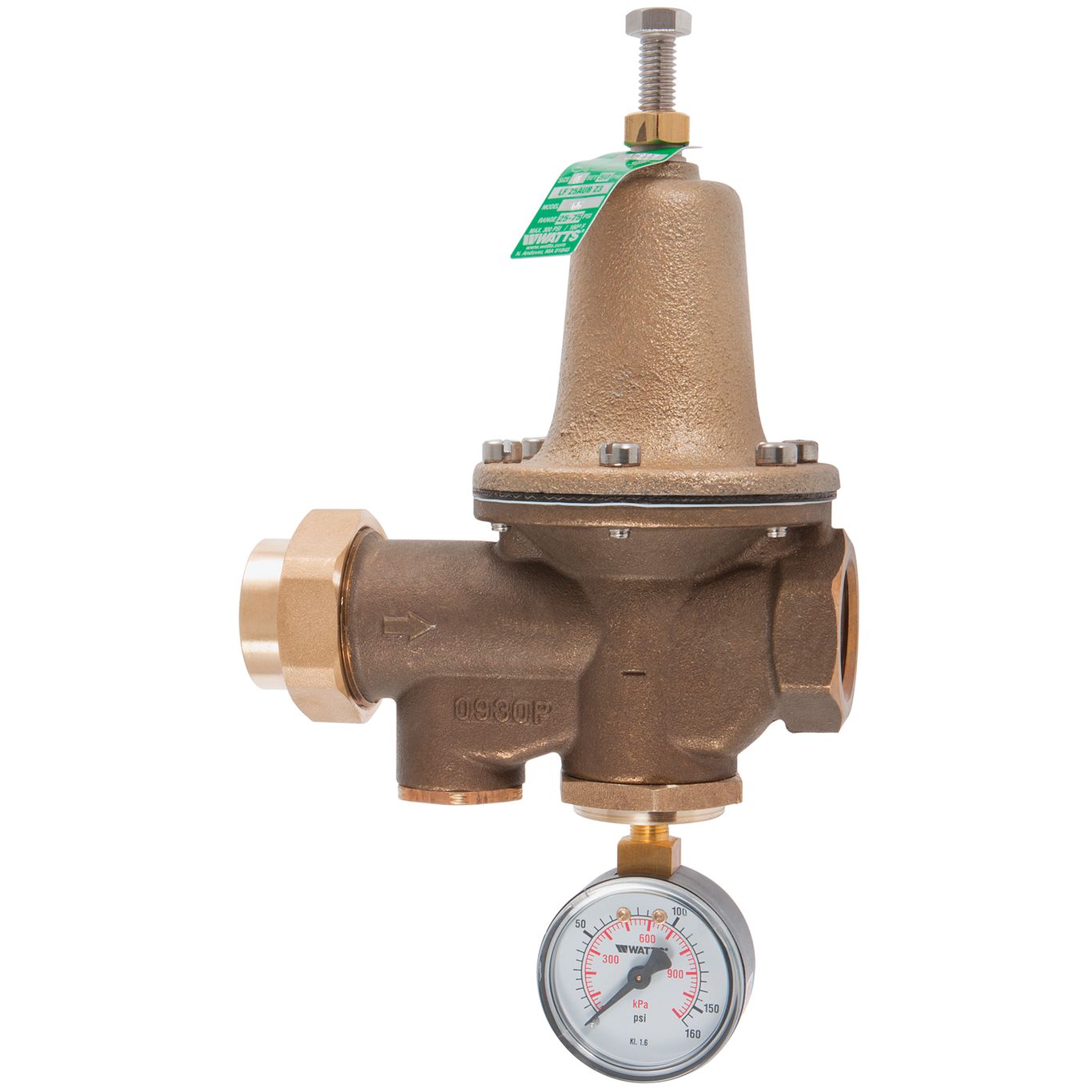

Watts 0009231 - LF25AUB-GG-Z3-1/2" Lead Free Brass Water Pressure Reducing Valve with 1/2" FNPT Connections, Gauge Tapping & 160 Gauge, Adjustable Pressure Gauge 25-75 PSI

This Watts 0009231 LF25AUB-GG-Z3 1/2" lead free brass water pressure reducing valve is equipped with gauge tapping and a 160 psi (11 bar) gauge. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications.

Product Features:

• This easy to maintain assembly consists of a replaceable seat module
• 1/2" NPT threaded female union inlet by NPT female outlet
• With a bypass feature to control thermal expansion pressure
• The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C)
• Suitable for up to 300 psi (20.7 bar)
• The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa)
• With the standard setting at 50 psi (345 kPa)
• Replaceable seat module
• Integral stainless steel strainer removable for cleaning
• Gauge tapping and gauge
• Sealed spring cage with stainless steel cage screws
• SKU: Watts 0009231
• Model: LF25AUB-GG-Z3-1/2

Product Specs:
