• Watts 0009225 - 1/2" LF25AUB-DU-G-Z3 Lead Free Water Pressure Reducing Valve with Gauge Tapping and Double Union Threaded Female Connections, Adjustable Pressure Range 25-75 PSI
  • Watts 0009225 - 1/2" LF25AUB-DU-G-Z3 Lead Free Water Pressure Reducing Valve with Gauge Tapping and Double Union Threaded Female Connections, Adjustable Pressure Range 25-75 PSI
1 2

Watts

Watts 0009225 - 1/2" LF25AUB-DU-G-Z3 Lead Free Water Pressure Reducing Valve with Gauge Tapping and Double Union Threaded Female Connections, Adjustable Pressure Range 25-75 PSI

Watts 0009225 - 1/2" LF25AUB-DU-G-Z3 Lead Free Water Pressure Reducing Valve with Gauge Tapping and Double Union Threaded Female Connections, Adjustable Pressure Range 25-75 PSI

$720.00 CAD
$720.00 CAD
Sale Sold out
Shipping calculated at checkout.

Ships in 2-3 days (Free Shipping)

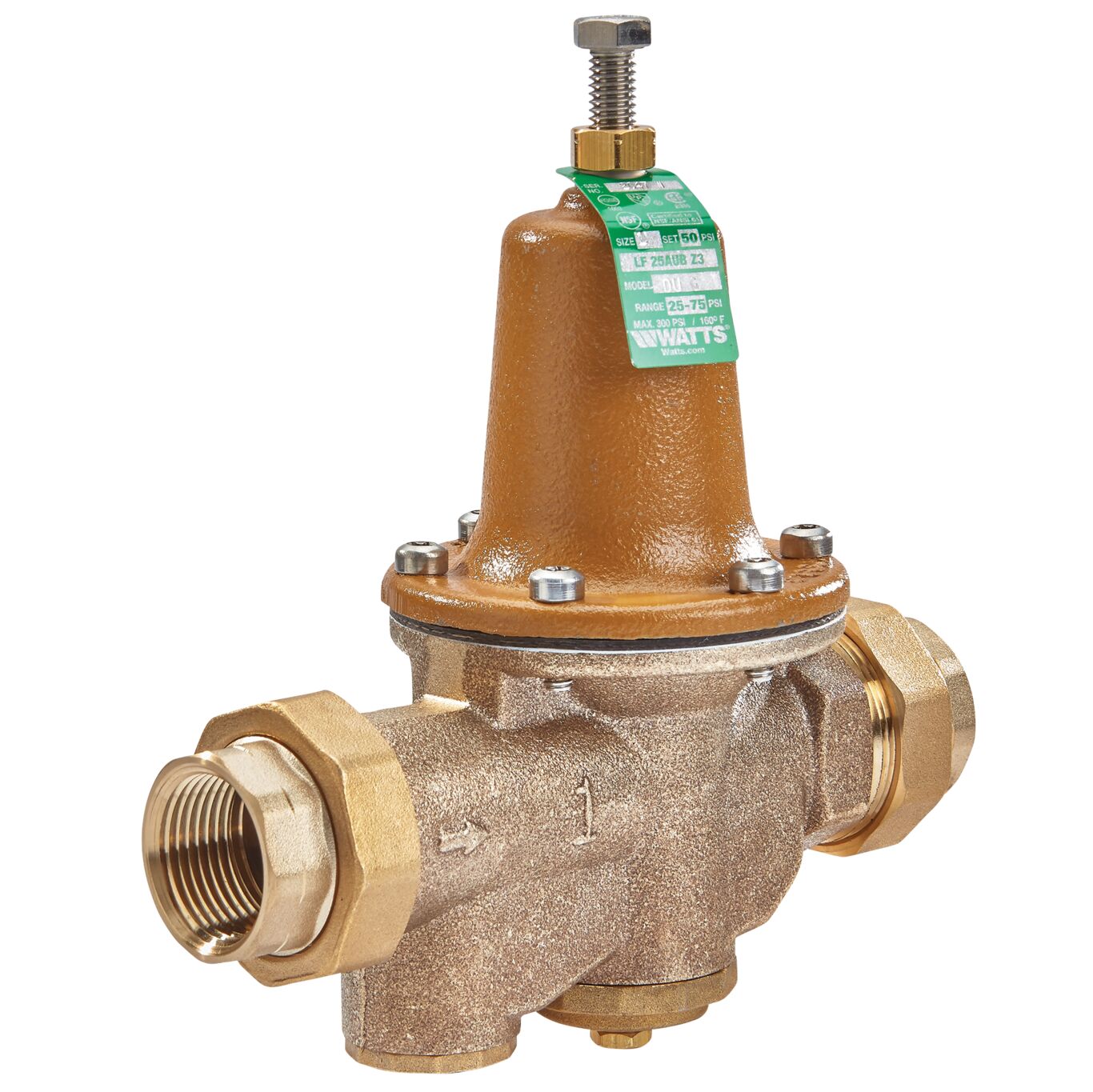

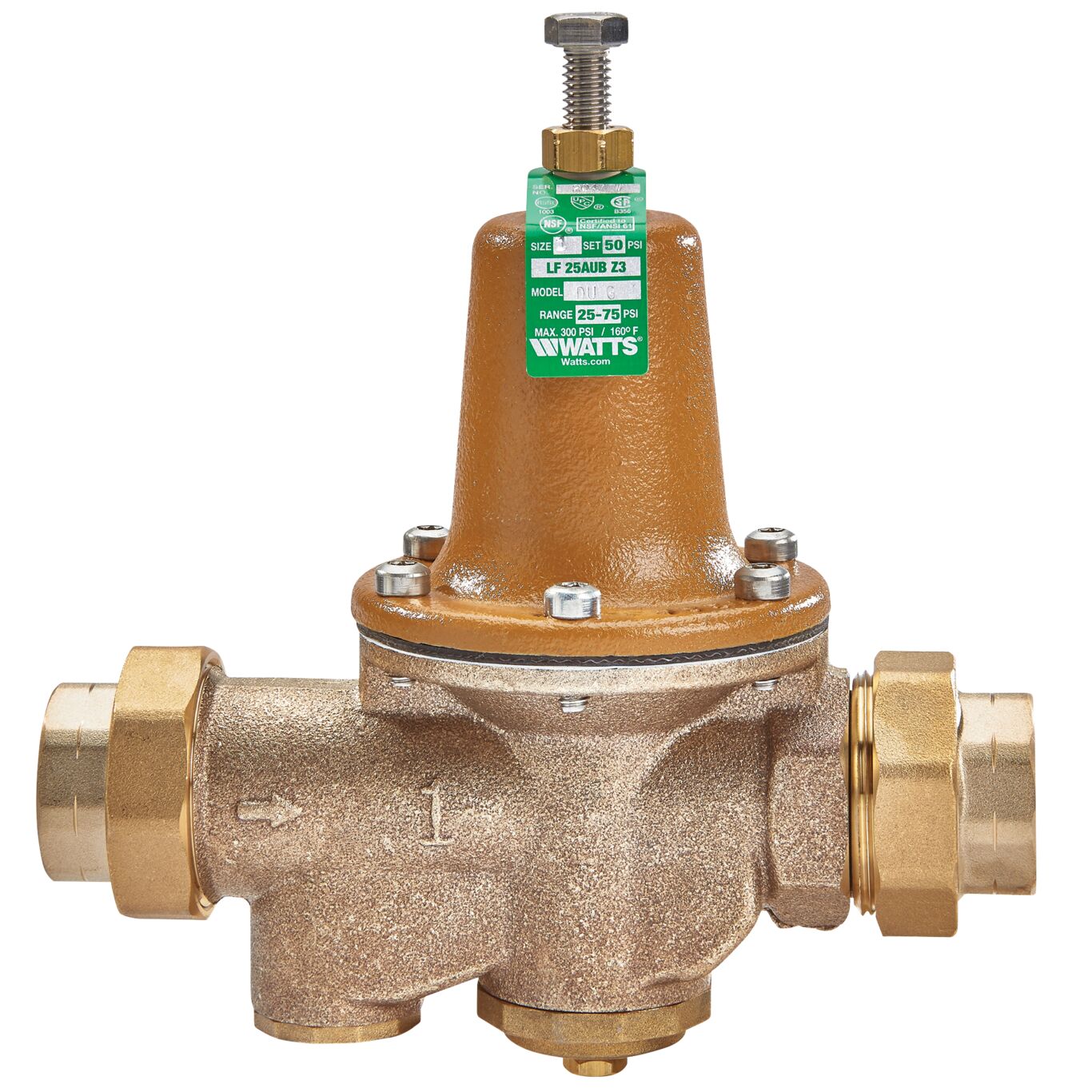

Watts 0009225 - 1/2" LF25AUB-DU-G-Z3 Lead Free Water Pressure Reducing Valve with Gauge Tapping and Double Union Threaded Female Connections, Adjustable Pressure Range 25-75 PSI.

This Watts 0009225 LF25AUB-DU-G-Z3 1/2" bronze water pressure reducing valve is equipped with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications.

Product Features:

  • The easy maintenance assembly consists of a replaceable seat module
  • 1/2" double union NPT threaded female inlet and outlet
  • With a bypass feature to control thermal expansion pressure
  • The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C)
  • Suitable for up to 300 psi (20.7 bar)
  • The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa)
  • With the standard setting at 50 psi (345 kPa)
  • Sealed spring cage with stainless steel cage screws
  • Replaceable seat module
  • Double unions, gauge tapping and plug
  • Integral stainless steel strainer removable for cleaning
  • SKU: Watts 0009225
  • Model: LF25AUB-DU-G-Z3-1/2

Product Specs:

View full details
