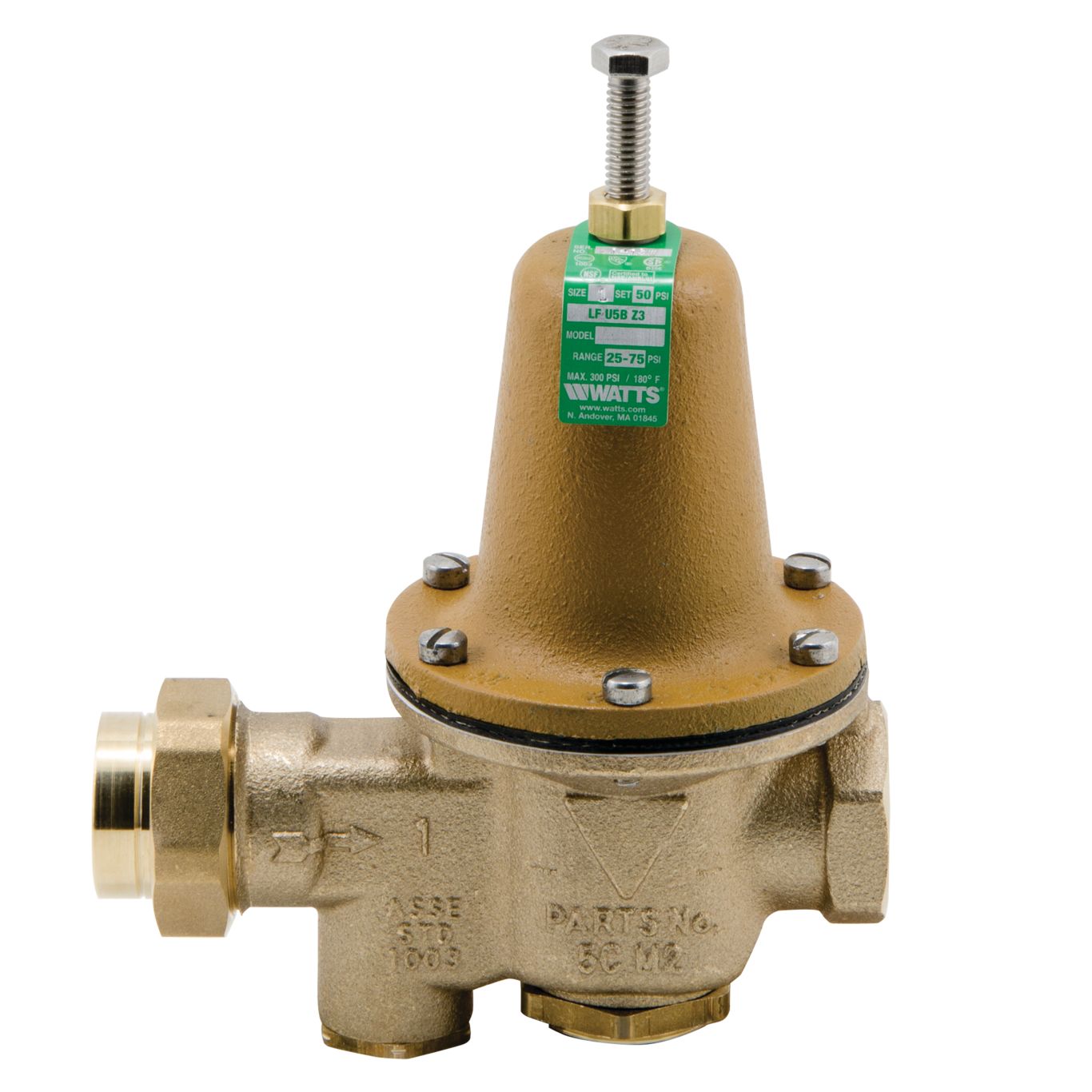

Watts 0009198 - LFU5B-G-Z3 1-1/2" NPT Lead Free Water Pressure Reducing Valve with Gauge Tapping, Adjustable Pressure Range 25-75 PSI

Ships in 2-3 days (Free Shipping)

Watts 0009198 LFU5B-G-Z3 1-1/2" NPT Lead Free Water Pressure Reducing Valve with Gauge Tapping, Adjustable Pressure Range 25-75 PSI.

This Watts 0009198 LFU5B-G-Z3 1 1/2" lead free high performance water pressure reducing valve is equipped with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure.

Product Features:

• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• Suitable for up to 300 psi (20.7 bar)
• The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa)
• With the standard setting at 50 psi (345 kPa)
• Serviceable in line without special tools
• Integral stainless steel strainer removable for cleaning
• High temperature resistant reinforced diaphragm for hot water
• Sealed spring cage with stainless steel cage screws
• SKU: 0009198
• Model: LFU5B-G-Z3 1-1/2

Product Specs:

• Brochure - Water Pressure Reducing Valves
• Brochure - Water Pressure Reducing Valves (Spanish)
• Installation Instructions
• Specification Sheet
