Watts 0009193 - LFU5B-GG-HP-Z3-1-1/2" Lead Free Water Pressure Reducing Valve, NPT Female Union X NPT Female, High Range 75-100 PSI, with Gauge Tapping and Gauge

Ships in 2-3 days (Free Shipping)

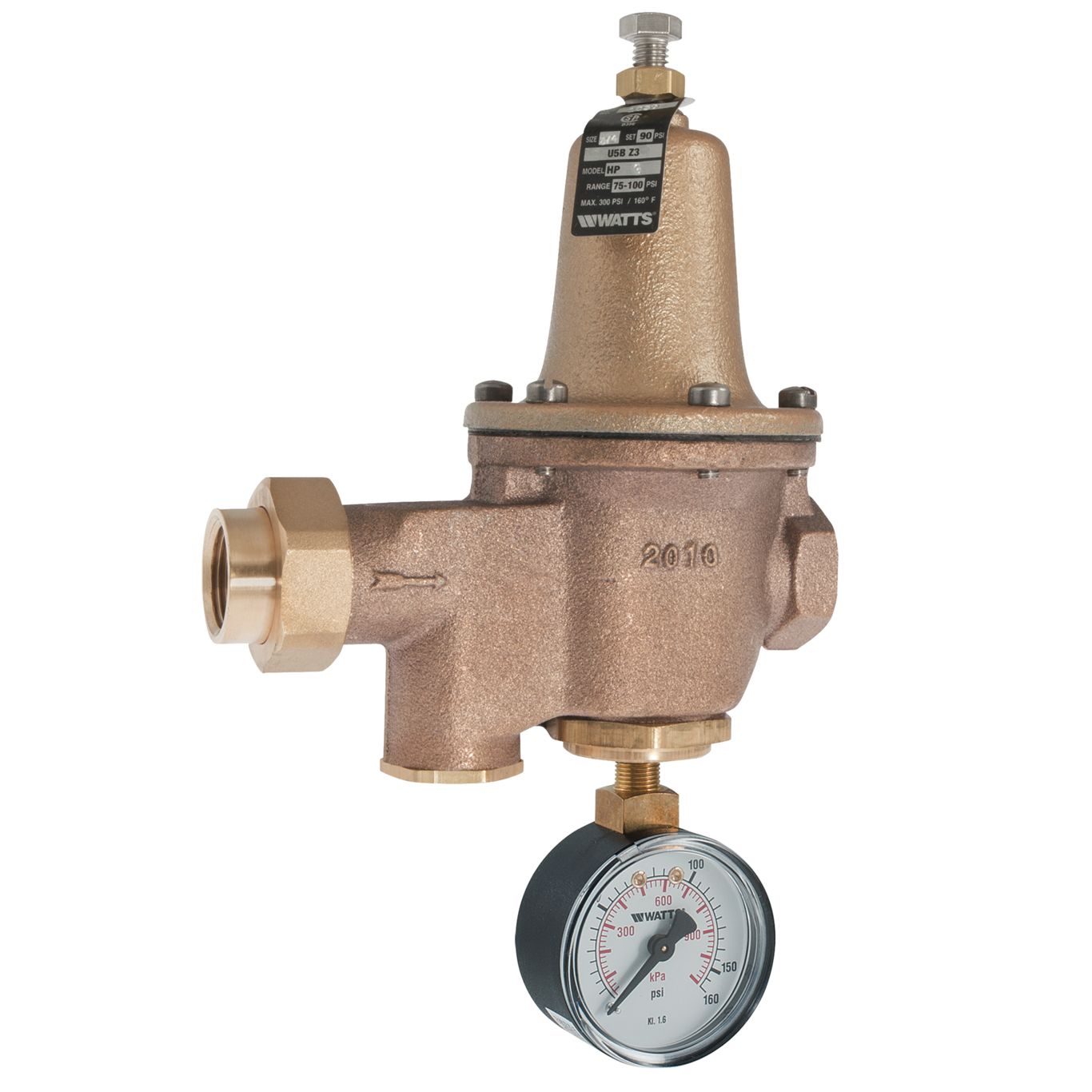

Watts 0009193 - LFU5B-GG-HP-Z3-1-1/2" Lead Free Water Pressure Reducing Valve, NPT Female Union X NPT Female, High Range 75-100 PSI, with Gauge Tapping and Gauge.

This 1 1/2 inch lead free high performance water pressure reducing valve is equipped for high pressure ranges with gauge tapping and a 160 psi (11.0 bar) gauge. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The high pressure range is 75-100 psi (518 to 690 kPa) with the standard setting at 90 psi (621 kPa).

Product Features:

• Bypass feature controls thermal expansion pressure
• High temperature resistant reinforced diaphragm for hot water
• Sealed spring cage with stainless steel cage screws
• Integral stainless steel strainer removable for cleaning
• SKU: Watts 0009193
• Model: LFU5B-GG-HP-Z3-1-1/2"

Product Specs:

• Specification Sheet
• Watts Spanish Brochure
• Installation Instructions
• Spanish Installation Instructions
• Manufacturer Page
