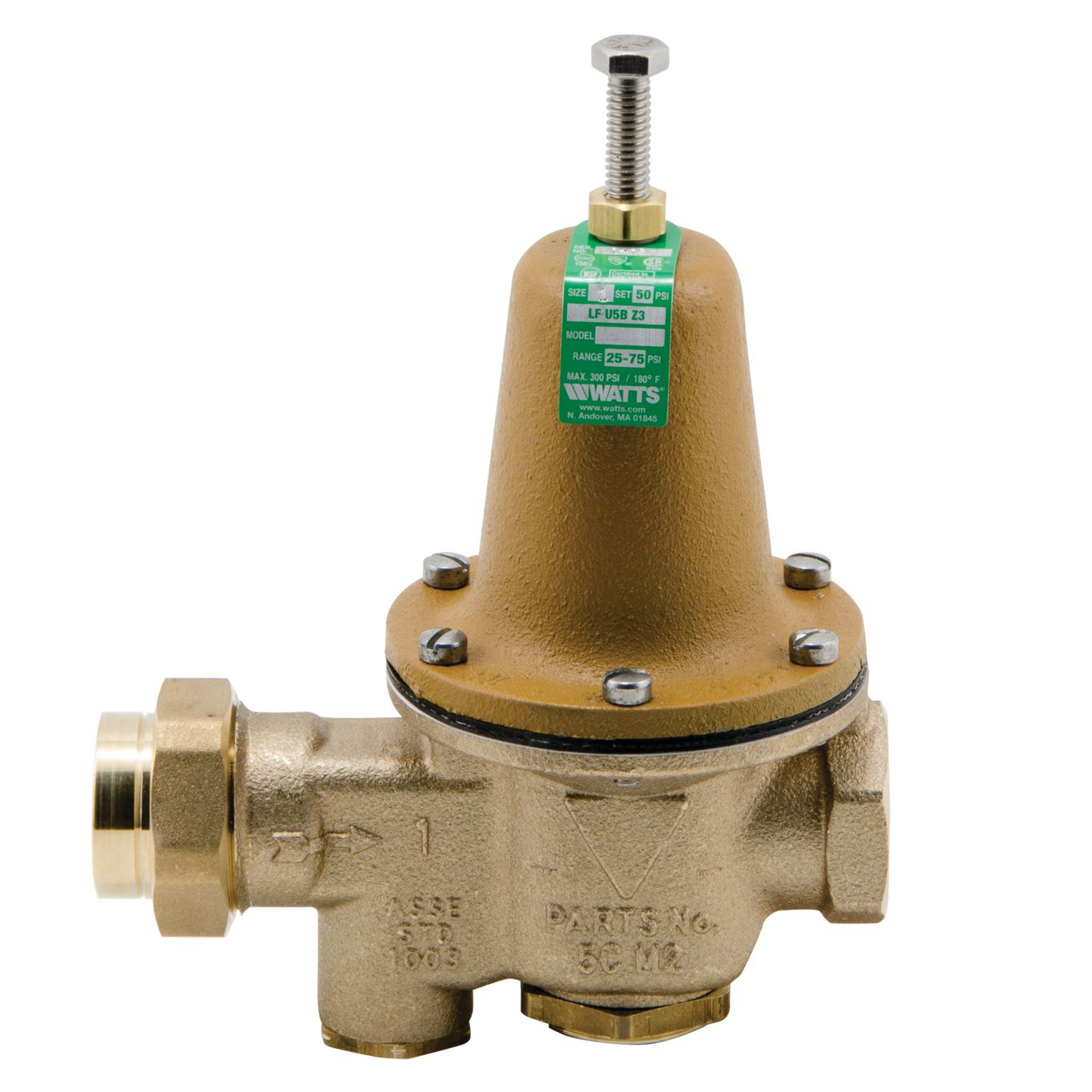

Watts 0009192 - LFU5B-Z3-1-1/2" High Performance Pressure Reducing Valve with Bypass Check Valve - Lead Free Copper Silicon Alloy Body

This Watts 0009192 LFU5B-Z3 1 1/2" lead free high performance water pressure reducing valve with a lead free cast copper silicon alloy body is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications.

Product Features:

• The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure
• The connection is 1-1/2" NPT female union x NPT female
• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• Suitable for up to 300 psi (20.7 bar)
• The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa)
• With the standard setting at 50 psi (345 kPa)
• NPT threaded female union inlet by NPT female outlet
• Serviceable in line without special tools
• Sealed spring cage with stainless steel cage screws
• Integral stainless steel strainer removable for cleaning
• SKU: 0009192
• Model: LFU5B-Z3-1-1/2

Product Specs:

• Brochure - Water Pressure Reducing Valves
• Brochure - Water Pressure Reducing Valves (Spanish)
• Installation Instructions
• Specification Sheet
