• Watts 0009180 LFU5B-Z3 1-1/4" FNPT Pressure Reducing Valve with Bypass Check Valve, Adjustable Pressure Range 25-75 PSI, Lead Free
1 1

Watts

Watts 0009180 - LFU5B-Z3-1-1/4 - 1-1/4" FNPT Pressure Reducing Valve with Bypass Check Valve, Adjustable Pressure Range 25-75 PSI, Lead Free

Watts 0009180 - LFU5B-Z3-1-1/4 - 1-1/4" FNPT Pressure Reducing Valve with Bypass Check Valve, Adjustable Pressure Range 25-75 PSI, Lead Free

$4,100.00 CAD
$4,100.00 CAD
Sale Sold out
Shipping calculated at checkout.

Ships in 2-3 days (Free Shipping)

Watts 0009180 - LFU5B-Z3-1-1/4 - 1-1/4" FNPT Pressure Reducing Valve with Bypass Check Valve, Adjustable Pressure Range 25-75 PSI, Lead Free.

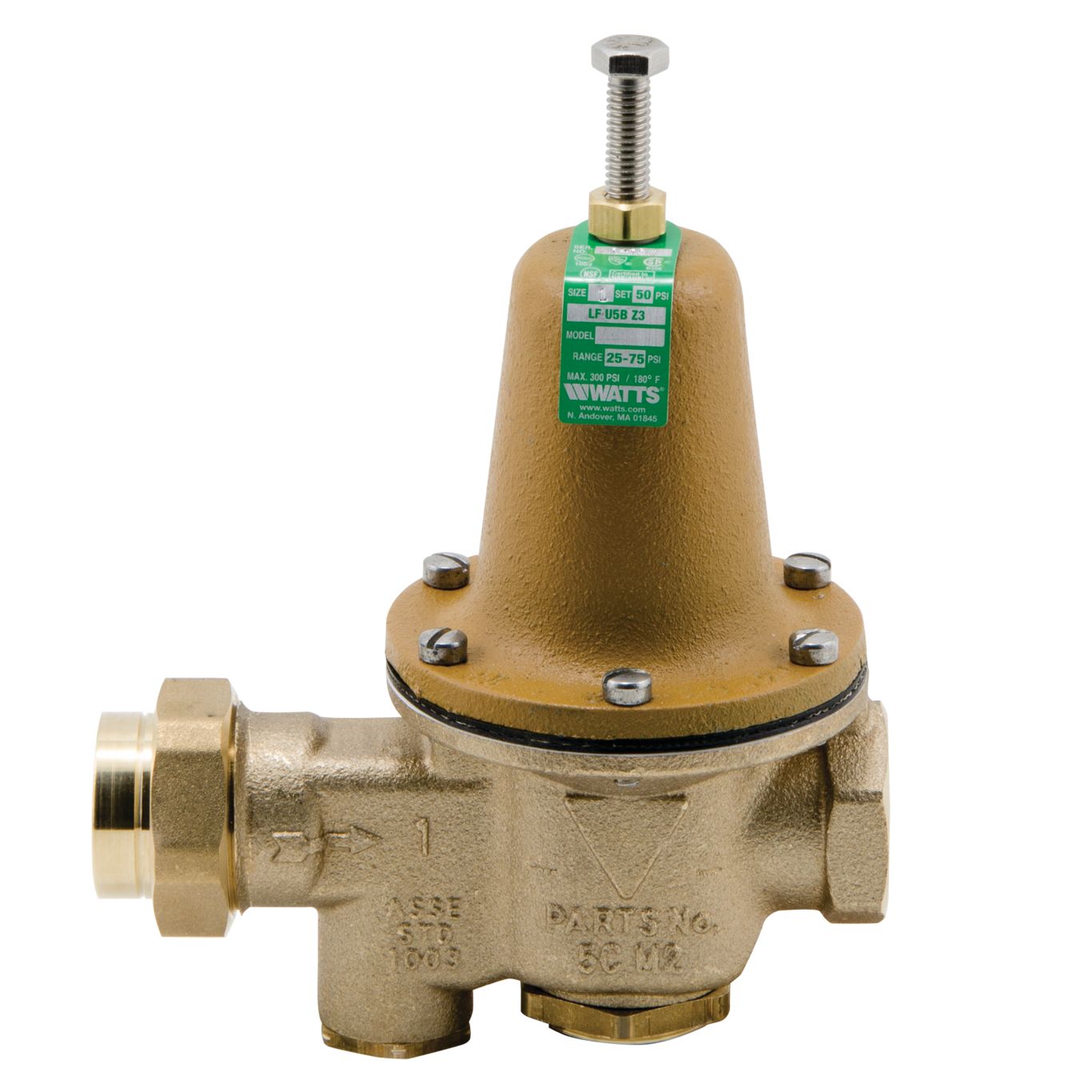

This Watts 0009180 LFU5B-Z3 1-1/4" lead free high performance water pressure reducing valve with a lead free cast copper silicon alloy body is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications.

Product Features:

  • The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure
  • The connection is NPT female union x NPT female
  • The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
  • Suitable for up to 300 psi (20.7 bar)
  • The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa)
  • With the standard setting at 50 psi (345 kPa)
  • Sealed spring cage with stainless steel cage screws
  • NPT threaded female union inlet by NPT female outlet
  • Serviceable in line without special tools
  • Integral stainless steel strainer removable for cleaning
  • SKU: 0009180
  • Model: LFU5B-Z3-1-1/4

Product Specs:
