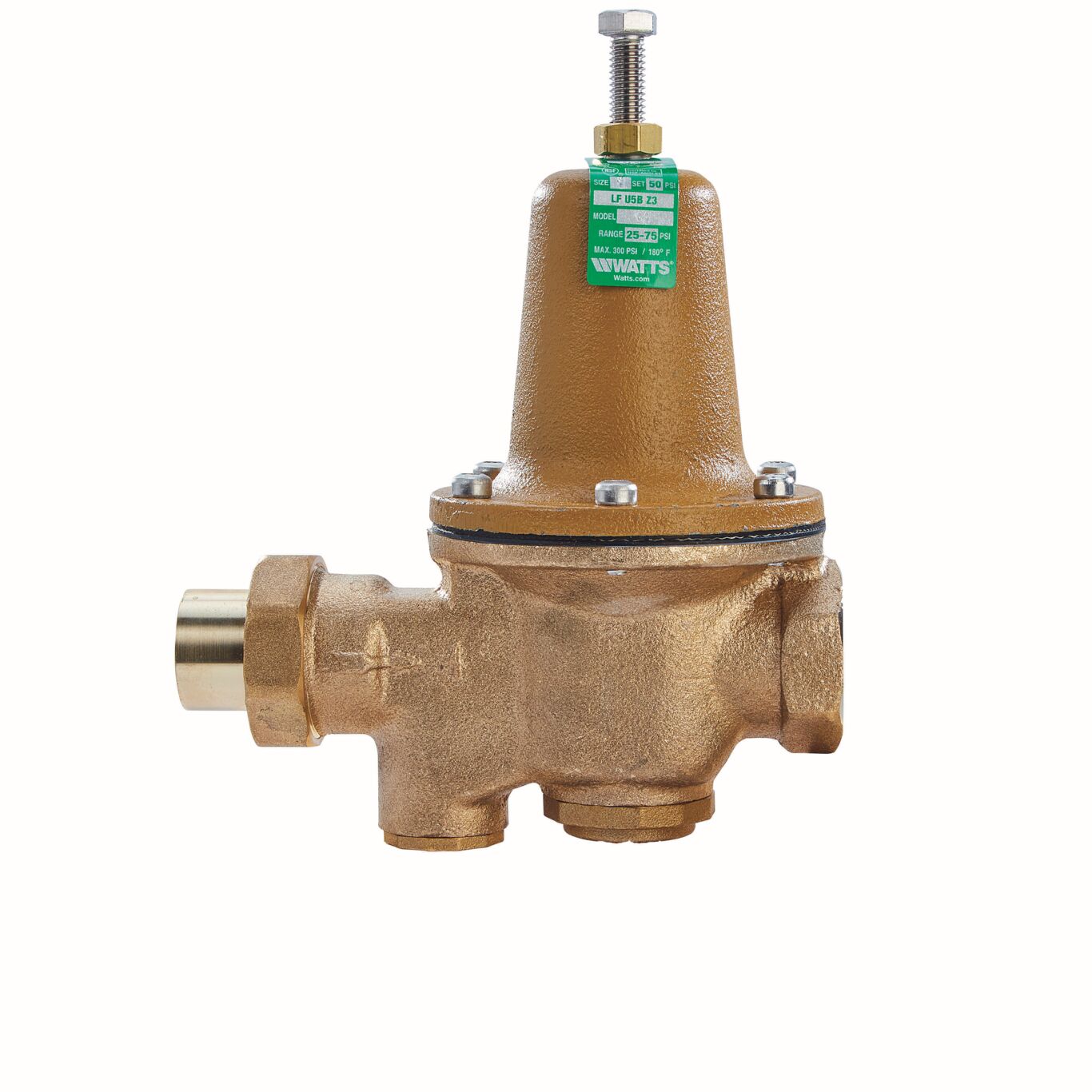

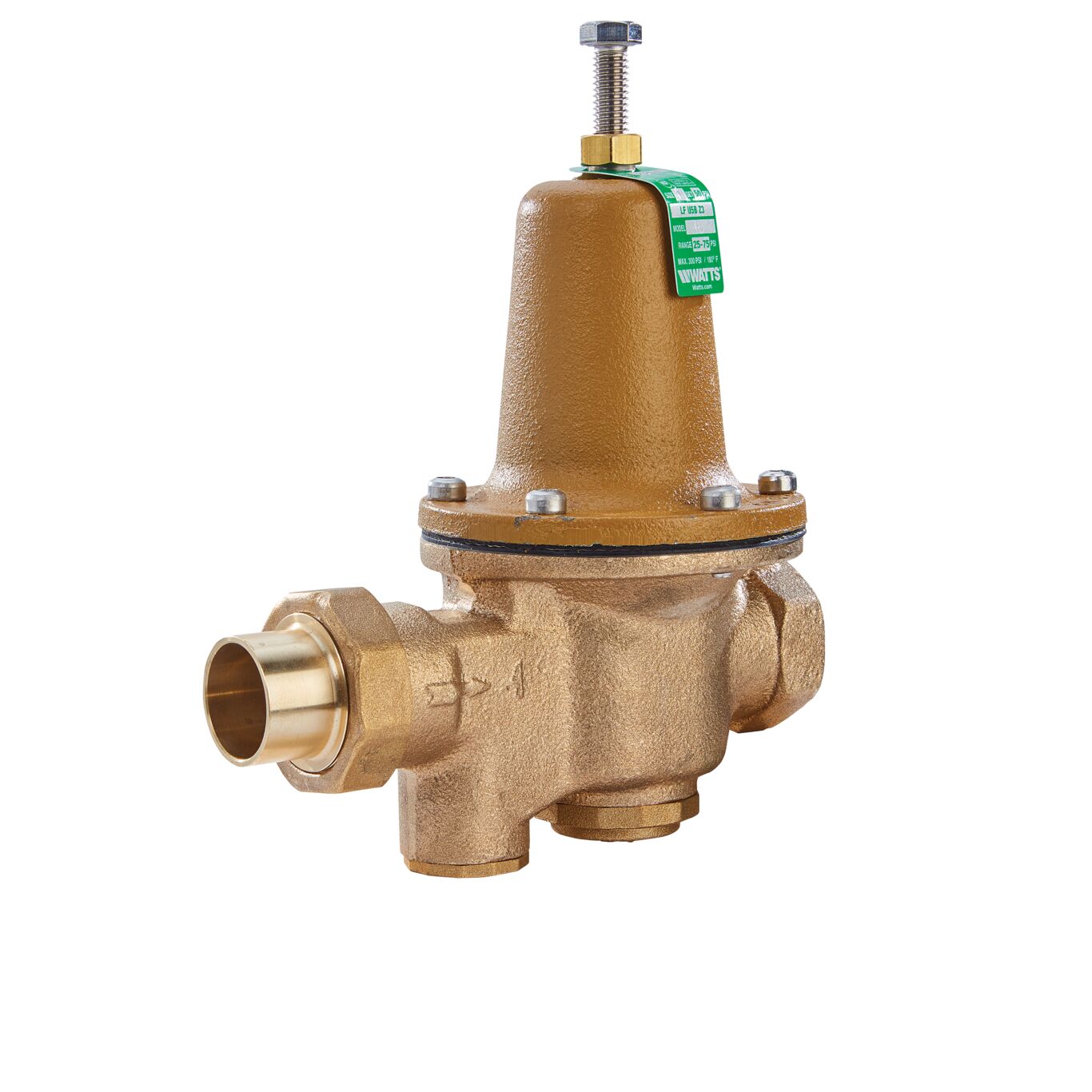

Watts 0009165 - LFU5B-S-G-Z3-1 - 1" Lead Free High Performance Water Pressure Reducing Valve with Solder Union Inlet X Female NPT Outlet and Gauge Tapping, Adjustable Pressure Range 25-75 psi

Ships in 2-3 days (Free Shipping)

Watts 0009165 - LFU5B-S-G-Z3-1 - 1" Lead Free High Performance Water Pressure Reducing Valve with Solder Union Inlet X Female NPT and Gauge Tapping, Adjustable Pressure Range 25-75 PSI.

This Watts 0009165 LFU5B-S-G-Z3-1 lead free high performance water pressure reducing valve is equipped with a solder union inlet with threaded female outlet and gauge tapping.

Product Features:

• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• Suitable for up to 300 psi (20.7 bar)
• The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa)
• With the standard setting at 50 psi (345 kPa)
• Integral stainless steel strainer removable for cleaning
• Solder union inlet, gauge tapping with plug
• Serviceable in line without special tools
• High temperature resisting diaphragm for hot or cold water
• SKU: 0009165
• Model: LFU5B-S-G-Z3-1

Product Specs:

• Brochure - Water Pressure Reducing Valves
• Brochure - Water Pressure Reducing Valves (Spanish)
• Installation Instructions
• Specification Sheet
• Manufacturer Page
