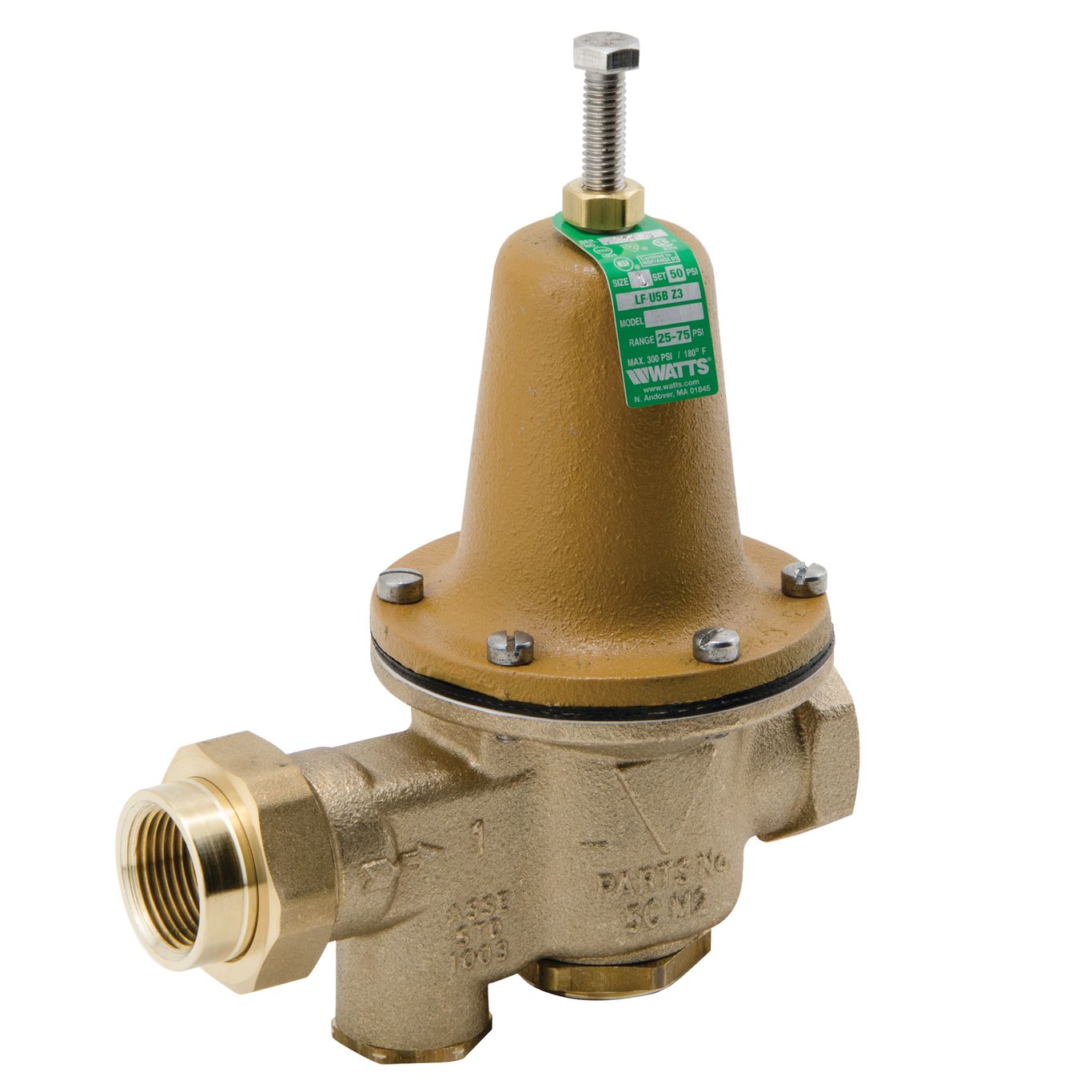

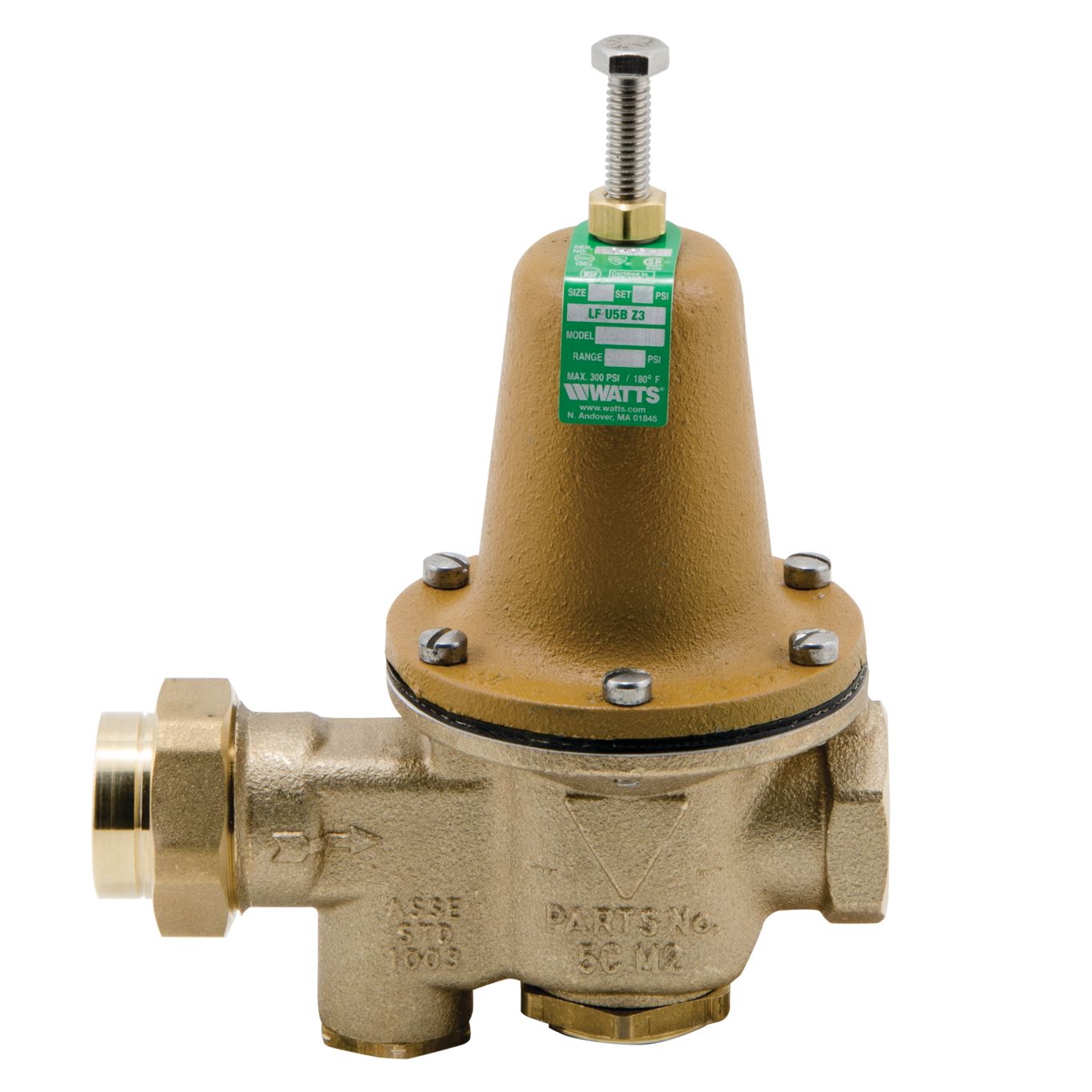

Watts 0009162 - LFU5B-LP-Z3-1 - 1" NPT Lead Free High Performance Low Pressure Reducing Valve with Bypass Feature, Pressure Range 10-35 PSI

Watts 0009162 - LFU5B-LP-Z3-1 - 1" NPT Lead Free High Performance Low Pressure Reducing Valve with Bypass Feature, Pressure Range 10-35 PSI

$1,638.00 CAD
$1,638.00 CAD
Sale Sold out
Shipping calculated at checkout.

Ships in 2-3 days (Free Shipping)

Watts 0009162 - LFU5B-LP-Z3-1 - 1" NPT Lead Free High Performance Low Pressure Reducing Valve with Bypass Feature, Pressure Range 10-35 PSI.

This Watts 0009162 LFU5B-LP-Z3 with easy to maintain assembly that consists of a replaceable seat module and a bypass feature to control thermal expansion pressure.

Product Features:

  • The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
  • The low pressure range is 10 to 35 psi (69 to 241 kPa)
  • With the standard setting at 30 psi (207 kPa)
  • Maximum pressure is 300 psi
  • Low pressure applications
  • Serviceable in line without special tools
  • NPT threaded female union inlet by NPT female outlet
  • Integral stainless steel strainer removable for cleaning
  • SKU: 0009162
  • Model: LFU5B-LP-Z3-1

Product Specs:

Adjustable Reduced Pressure Range 10 to 35
Adjustable Reduced Pressure Range-BAR 0.7 to 2.4
Body Material Lead Free Copper Silicon Alloy
Brand Watts
Buy American Act Compliant YES
Corrosion Resistant Coating Yes
Disc Material EPDM
EAN 098268328073
Gauge Option No Gauge
High Pressure Reduced Pressure Range Does Not Apply To Product
High Pressure Reduced Pressure Setting Does Not Apply To Product
Inlet Connection Size 1 IN
Inlet Connection Type Female Threaded
Inlet Thread Type NPT
Lead Free YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 20.70
Maximum Working Pressure-PSI 300
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1 IN
Outlet Connection Type Female Threaded
Outlet Thread Type NPT
Part Number 0009162
Series LFU5B-Z3
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Bronze
Valve Style Standard
