Watts 0009161 - LFU5B-HP-Z3-1 - 1" Lead Free Brass High Performance Water Pressure Reducing Valve for High Pressure Ranges 75-100 PSI

Ships in 2-3 days (Free Shipping)

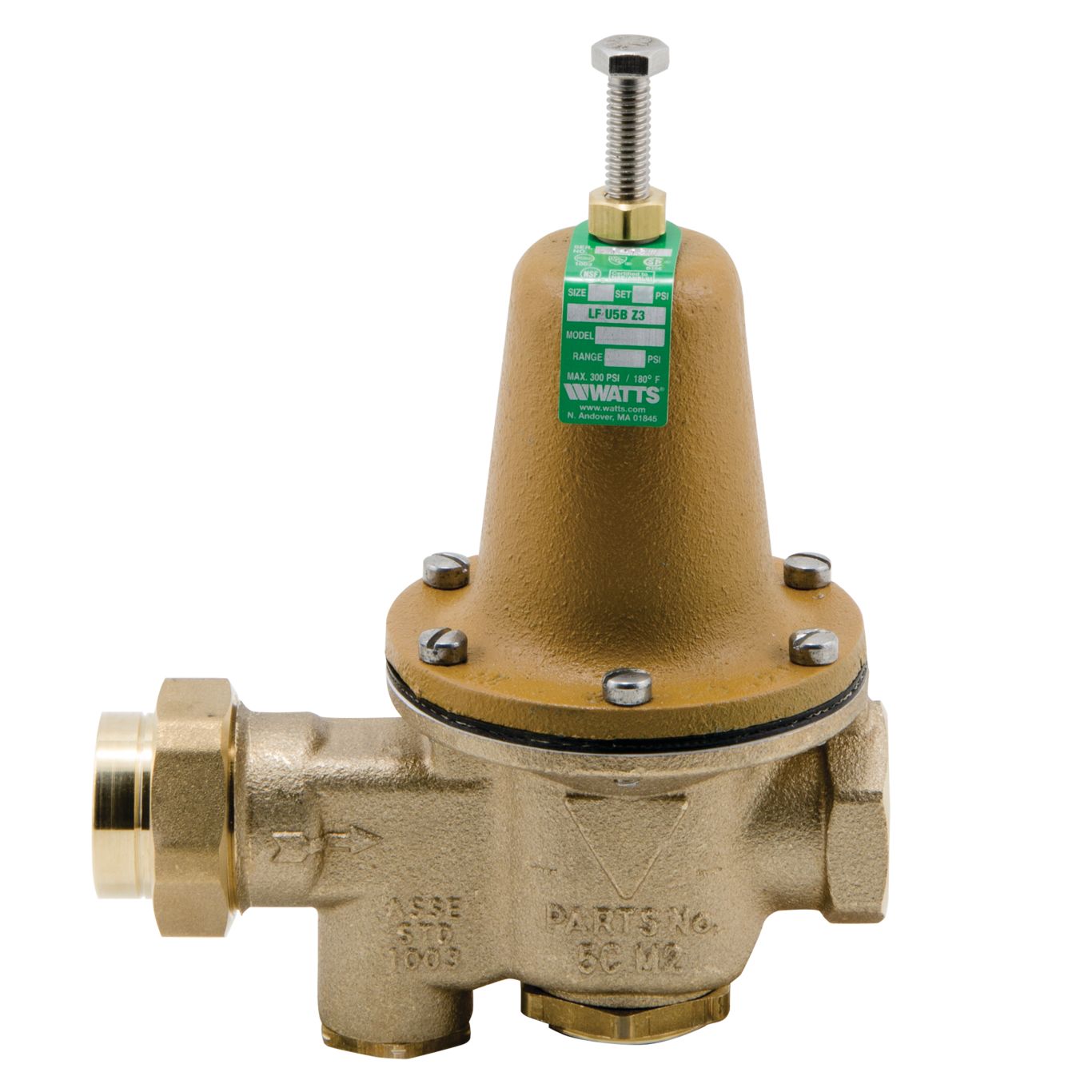

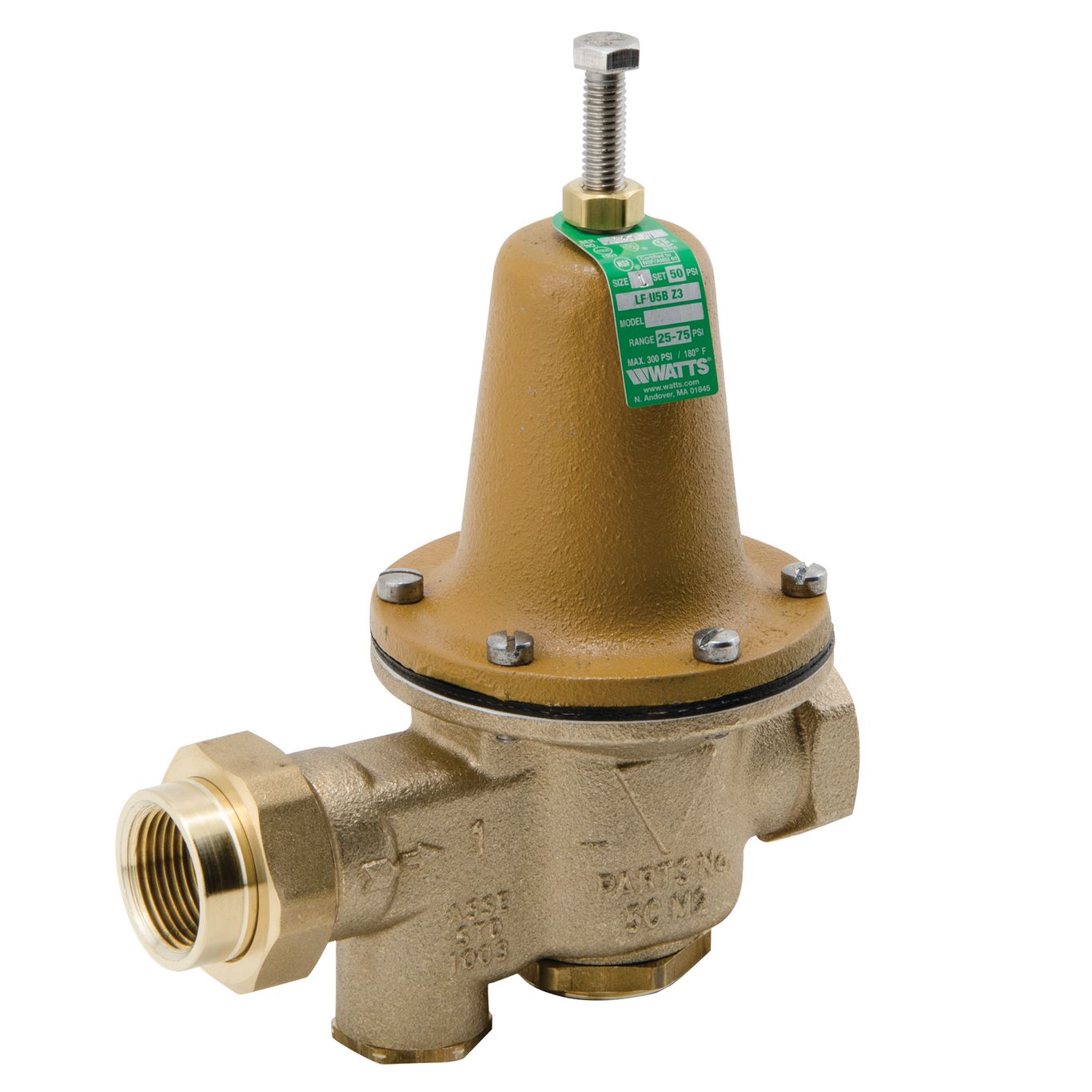

Watts 0009161 - LFU5B-HP-Z3 1" NPT Lead Free Brass High Performance Water Pressure Reducing Valve for High Pressure Ranges 75-100 PSI.

This Watts 0009161 LFU5B-HP-Z3 in 1" is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications.

Product Features:

• Lead Free Water Pressure Reducing Valve
• High pressure range of 75-100 psi
• The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure
• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• The high pressure range is 75-100 psi (518 to 690 kPa)
• With the standard setting at 90 psi (621 kPa)
• With 1" NPT threaded female union inlet by NPT female outlet
• High pressure applications
• Serviceable in line without special tools
• Integral stainless steel strainer removable for cleaning
• SKU: 0009161
• Model: LFU5B-HP-Z3-1

Product Specs:
