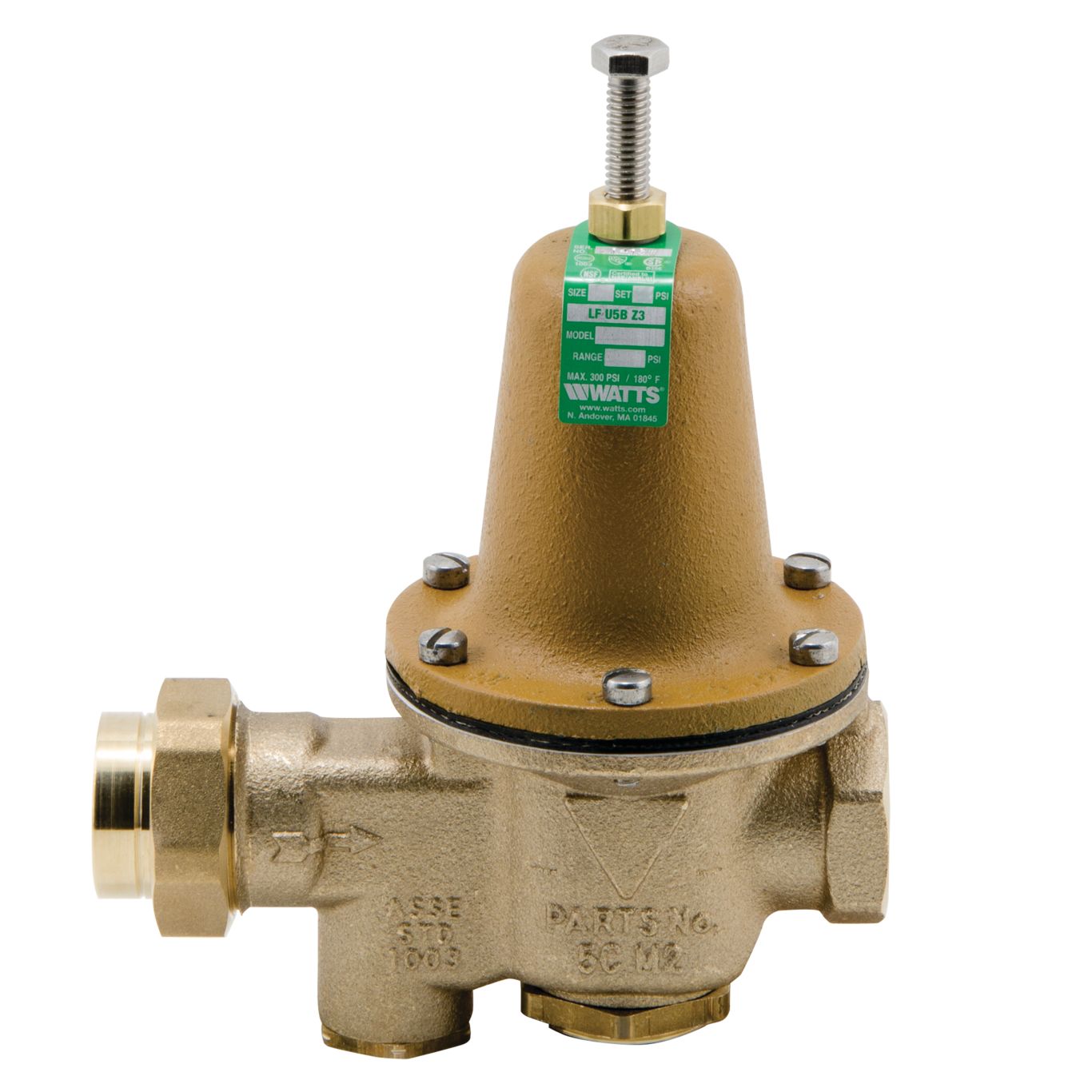

Watts 0009159 LFU5B-G-LP-Z3 1" NPT Low Pressure Water Pressure Reducing Valve with Gauge Tapping, Low Range 10-35 PSI, Lead Free

Ships in 2-3 days (Free Shipping)

Watts 0009159 LFU5B-G-LP-Z3 1" NPT Low Pressure Water Pressure Reducing Valve with Gauge Tapping, Low Range 10-35 PSI.

This Watts 0009159 LFU5B-G-LP-Z3 1" lead free high performance water pressure reducing valve is equipped for low pressure ranges with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications.

Product Features:

• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• With low pressure range of 10 to 35 psi (69 to 241 kPa)
• The standard setting is set at 30 psi (207 kPa)
• Integral stainless steel strainer removable for cleaning
• NPT threaded female union inlet by NPT female outlet
• Serviceable in line without special tools
• Low pressure applications and gauge tapping with plug
• The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure
• SKU: 0009159
• Model: LFU5B-G-LP-Z3-1

Product Specs:
