• Watts 0009157 - LFU5B-GG-Z3 1" NPT Lead Free High Performance Water Pressure Reducing Valve with Gauge Tapping & 160 PSI Gauge, Adjustable Pressure Range 25-75 PSI
1 1

Watts

Watts 0009157 - LFU5B-GG-Z3-1 - 1" NPT Lead Free High Performance Water Pressure Reducing Valve with Gauge Tapping & 160 PSI Gauge, Adjustable Pressure Range 25-75 PSI

Watts 0009157 - LFU5B-GG-Z3-1 - 1" NPT Lead Free High Performance Water Pressure Reducing Valve with Gauge Tapping & 160 PSI Gauge, Adjustable Pressure Range 25-75 PSI

$2,490.00 CAD
$2,490.00 CAD
Sale Sold out
Shipping calculated at checkout.

Ships in 2-3 days (Free Shipping)

Watts 0009157 - LFU5B-GG-Z3 1" NPT Lead Free High Performance Water Pressure Reducing Valve with Gauge Tapping & 160 PSI Gauge, Adjustable Pressure Range 25-75 PSI.

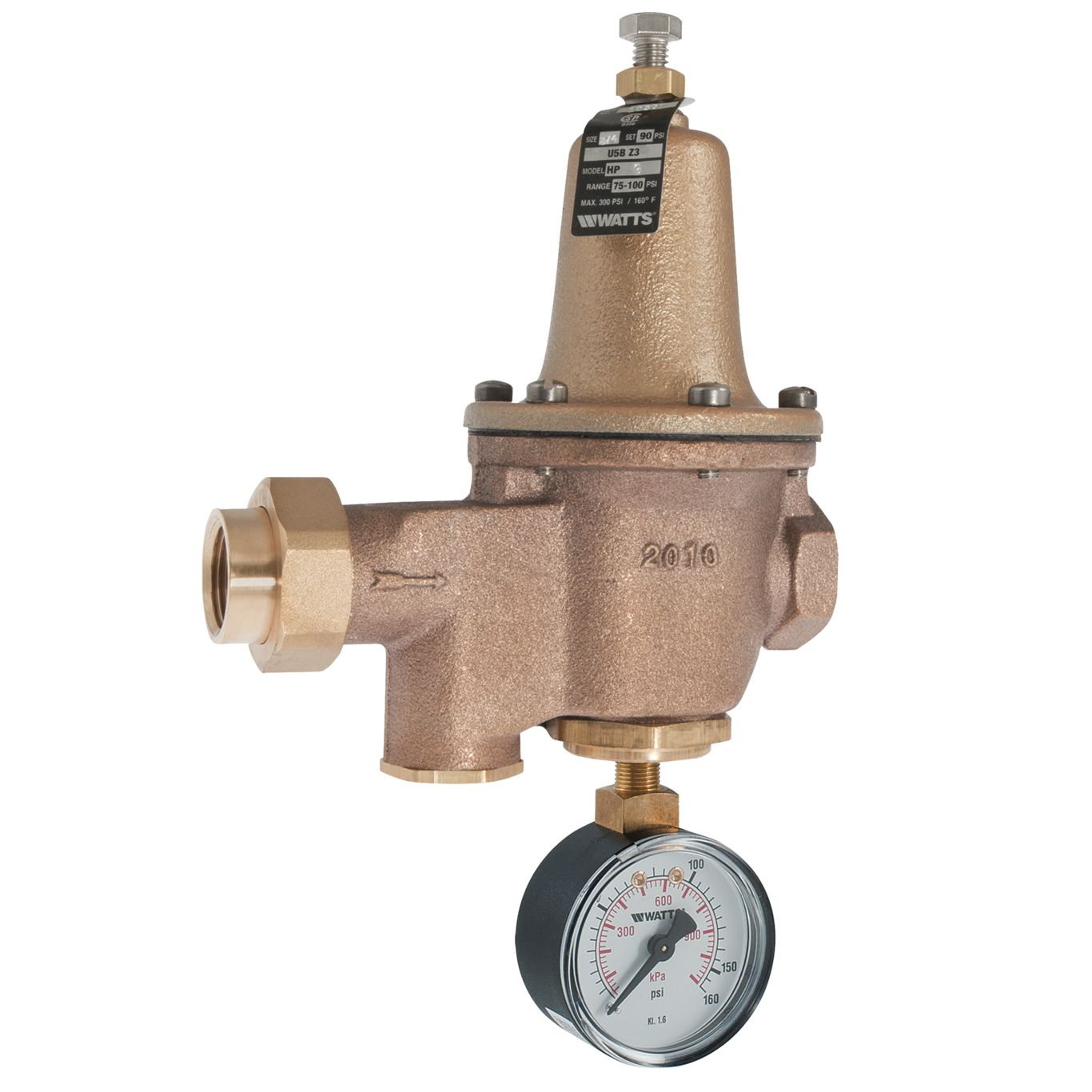

This Watts 0009157 - LFU5B-GG-Z3 1" lead free high performance water pressure reducing valve is equipped with gauge tapping and a 160 psi (11.0 bar) gauge. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications.

Product Features:

  • With easy to maintenance assembly that consists of a replaceable seat module and a bypass feature to control thermal expansion pressure
  • The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
  • Suitable for up to 300 psi (20.7 bar)
  • The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa)
  • With the standard setting at 50 psi (345 kPa).
  • Gauge tapping and gauge
  • Integral stainless steel strainer removable for cleaning
  • 1" NPT threaded female union inlet by NPT female outlet
  • Serviceable in line without special tools
  • SKU: 0009157
  • Model: LFU5B-GG-Z3-1
