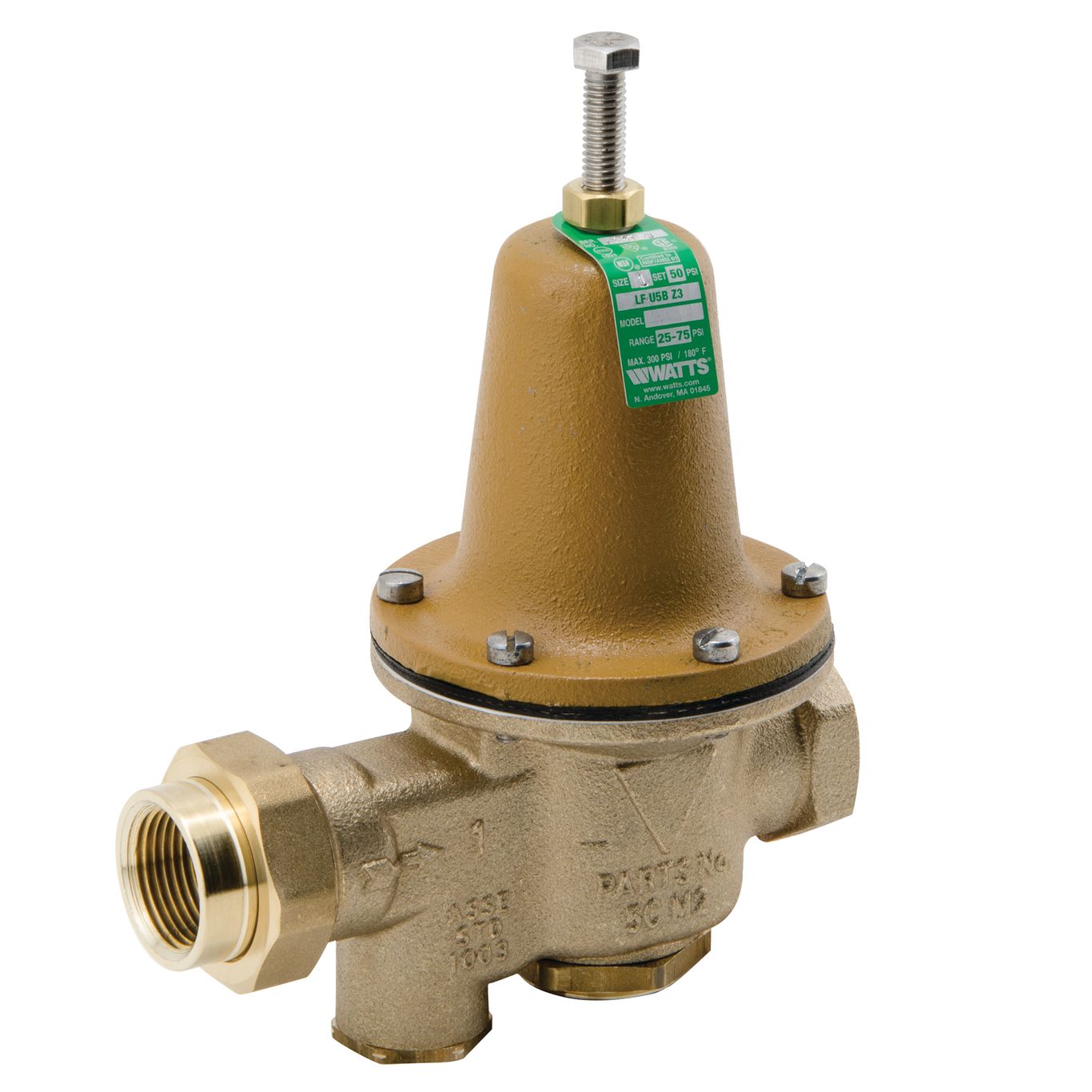

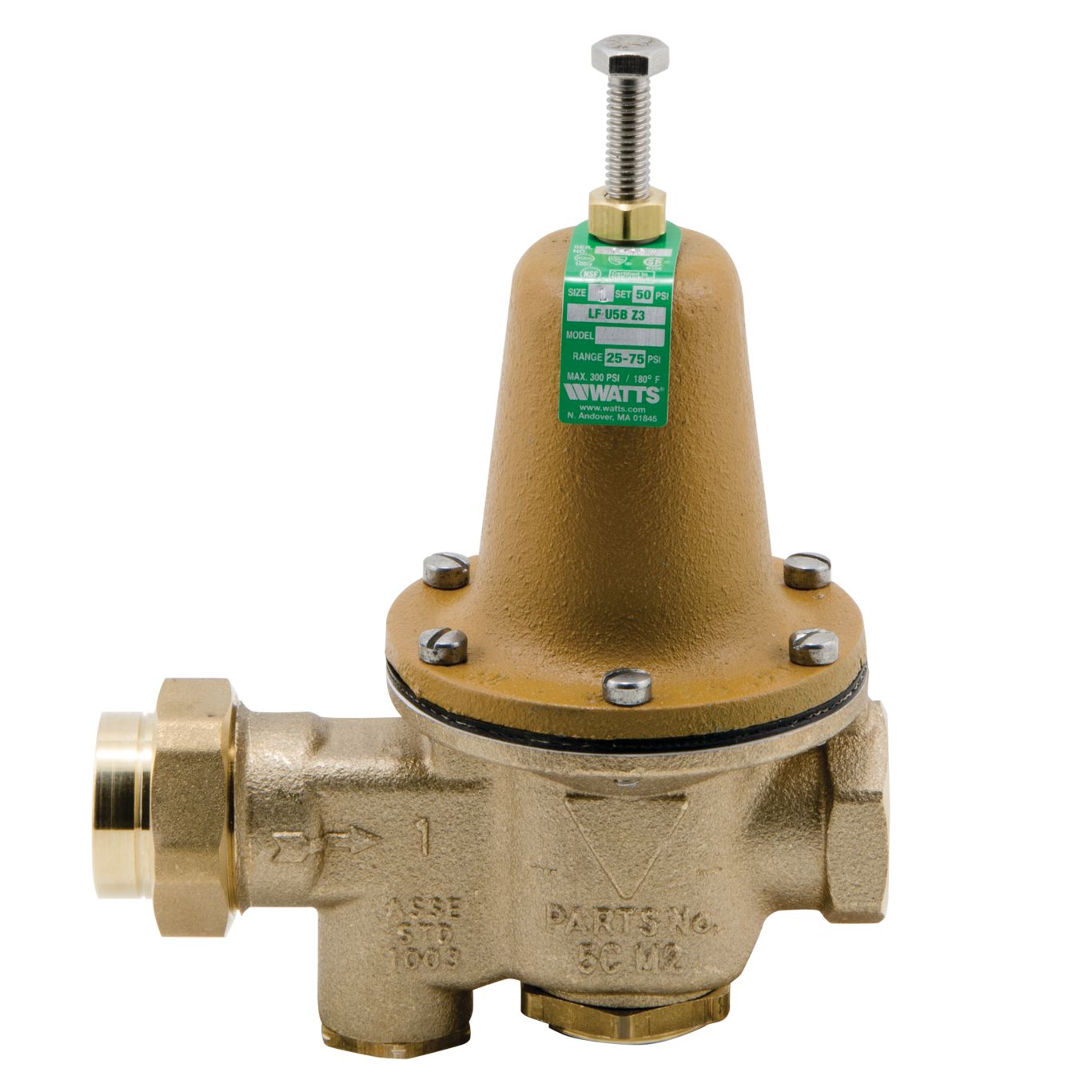

Watts 0009154 - LFU5B-Z3-1 - 1" NPT High Performance Water Pressure Reducing Valve, Lead Free Cast Copper Silicon Alloy Body

Ships in 1-2 days (Free Shipping)

Watts 0009154 - LFU5B-Z3- 1 - 1" High Performance Water Pressure Reducing Valve, Lead Free Cast Copper Silicon Alloy Body.

This Watts 0009154 - LFU5B-Z3 1" lead free high performance water pressure reducing valve with a lead free cast copper silicon alloy body is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications.

Product Features:

• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• Suitable for up to 300 psi (20.7 bar)
• The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa)
• With the standard setting at 50 psi (345 kPa)
• Bypass feature controls thermal expansion pressure
• Sealed spring cage with stainless steel cage screws
• Serviceable in line without special tools
• Integral stainless steel strainer removable for cleaning
• The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure
• SKU: 0009154
• Model: LFU5B-Z3-1

Product Specs:

• Installation Instructions
• Product Brochure
• Specification Sheet
• Manufacturer Page
