Watts 0009126 - LFU5B-HP-Z3-3/4 - 3/4" NPT High Performance Water Pressure Reducing Valve for High Pressure Ranges 75-100 PSI, Lead Free Brass

Ships in 2-3 days (Free Shipping)

Watts 0009126 - LFU5B-HP-Z3 3/4" NPT High Performance Water Pressure Reducing Valve for High Pressure Ranges 75-100 PSI, Lead Free Brass.

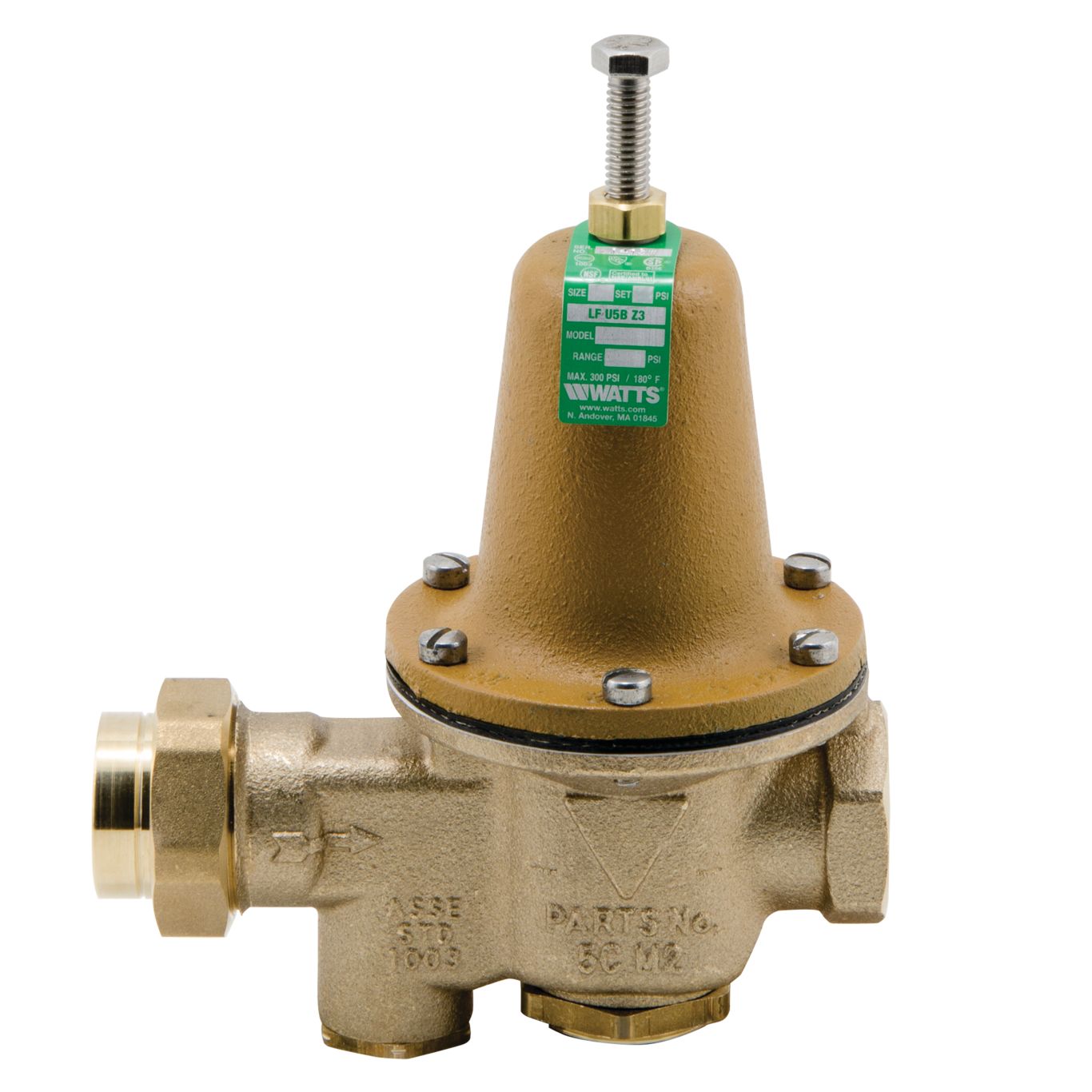

This Watts 0009126 LFU5B-HP-Z3 3/4" lead free brass high performance water pressure reducing valve is equipped for high pressure ranges. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure.

Product Features:

• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• The high pressure range is 75-100 psi (518 to 690 kPa)
• Standard setting at 90 psi (621 kPa)
• Maximum working pressure is 300 psi
• 3/4" NPT Female Union X NPT Female end connections
• Serviceable in line without special tools
• Sealed spring cage with stainless steel cage screws
• Bypass feature controls thermal expansion pressure
• Integral stainless steel strainer removable for cleaning
• SKU: 0009126
• Model: LFU5B-HP-Z3-3/4

Product Specs:

• Installation Instructions
• Product Brochure
• Specification Sheet
• Manufacturer Page
