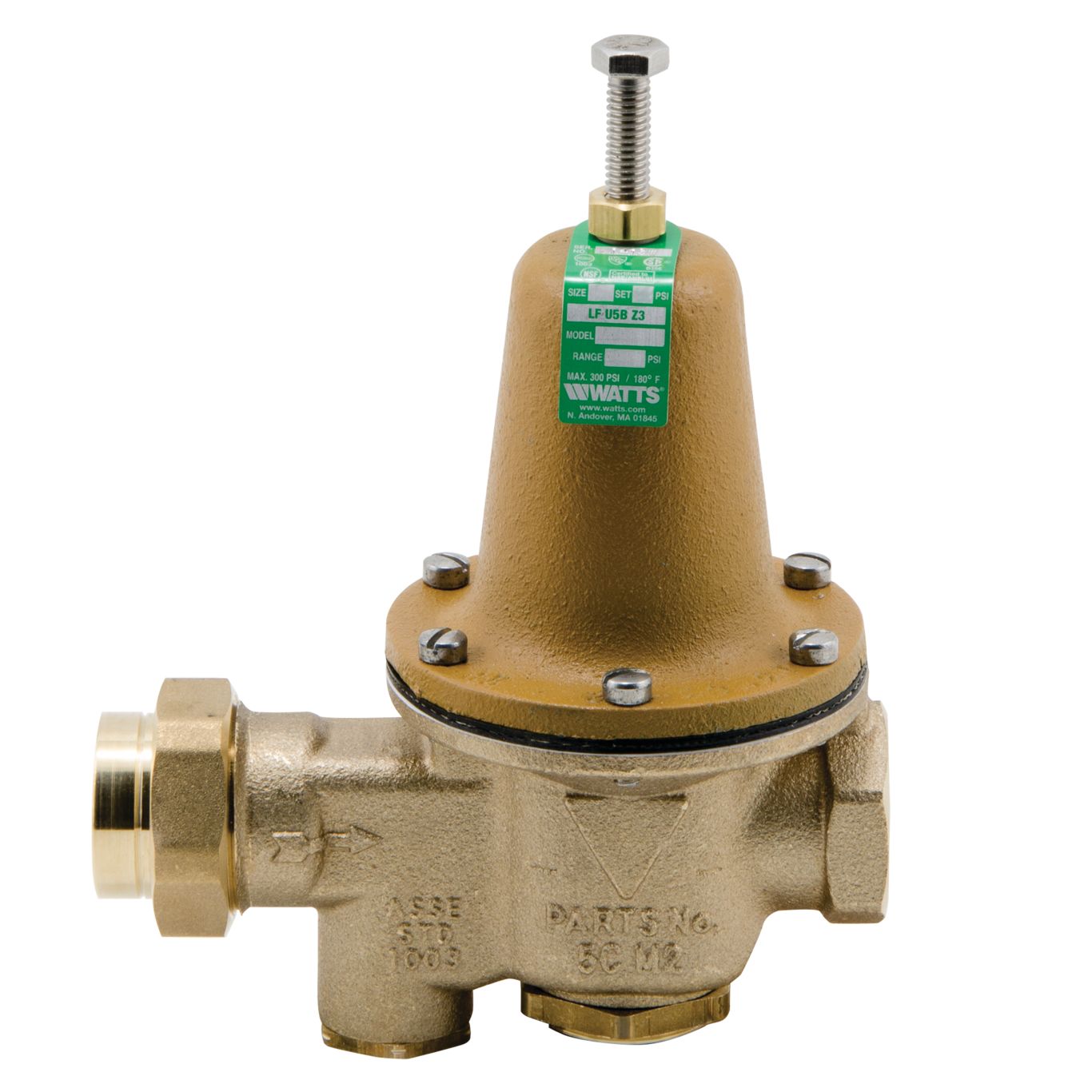

Watts 0009124 - LFU5B-G-LP-Z3-3/4 - 3/4" NPT Lead Free Brass High Performance Water Pressure Reducing Valve with Gauge Tapping and Low Pressure Range (10-35 PSI)

Ships in 2-3 days (Free Shipping)

Watts 0009124 - LFU5B-G-LP-Z3 3/4" NPT Lead Free Brass High Performance Water Pressure Reducing Valve with Gauge Tapping and Low Pressure Range (10-35 PSI).

This Watts 0009124 - LFU5B-G-LP-Z3 3/4 inch lead free brass high performance water pressure reducing valve is equipped for low pressure ranges with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure.

Product Features:

• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• 3/4" NPT Female Union x NPT Female end connections
• The low pressure range is 10 to 35 psi (69 to 241 kPa) with the standard setting at 30 psi (207 kPa)
• Serviceable in line without special tools
• Sealed spring cage with stainless steel cage screws
• Bypass feature controls thermal expansion pressure
• Integral stainless steel strainer removable for cleaning
• SKU: 0009124
• Model: LFU5B-G-LP-Z3-3/4
