Watts 0009107 - LFU5B-HP-Z3 1/2" NPT Lead Free High Pressure Water Pressure Reducing Valve, Pressure Range 75-100 PSI

Ships in 1-2 days (Free Shipping)

Watts 0009107 - LFU5B-HP-Z3 1/2" NPT Lead Free High Pressure Water Pressure Reducing Valve, Pressure Range 75-100 PSI.

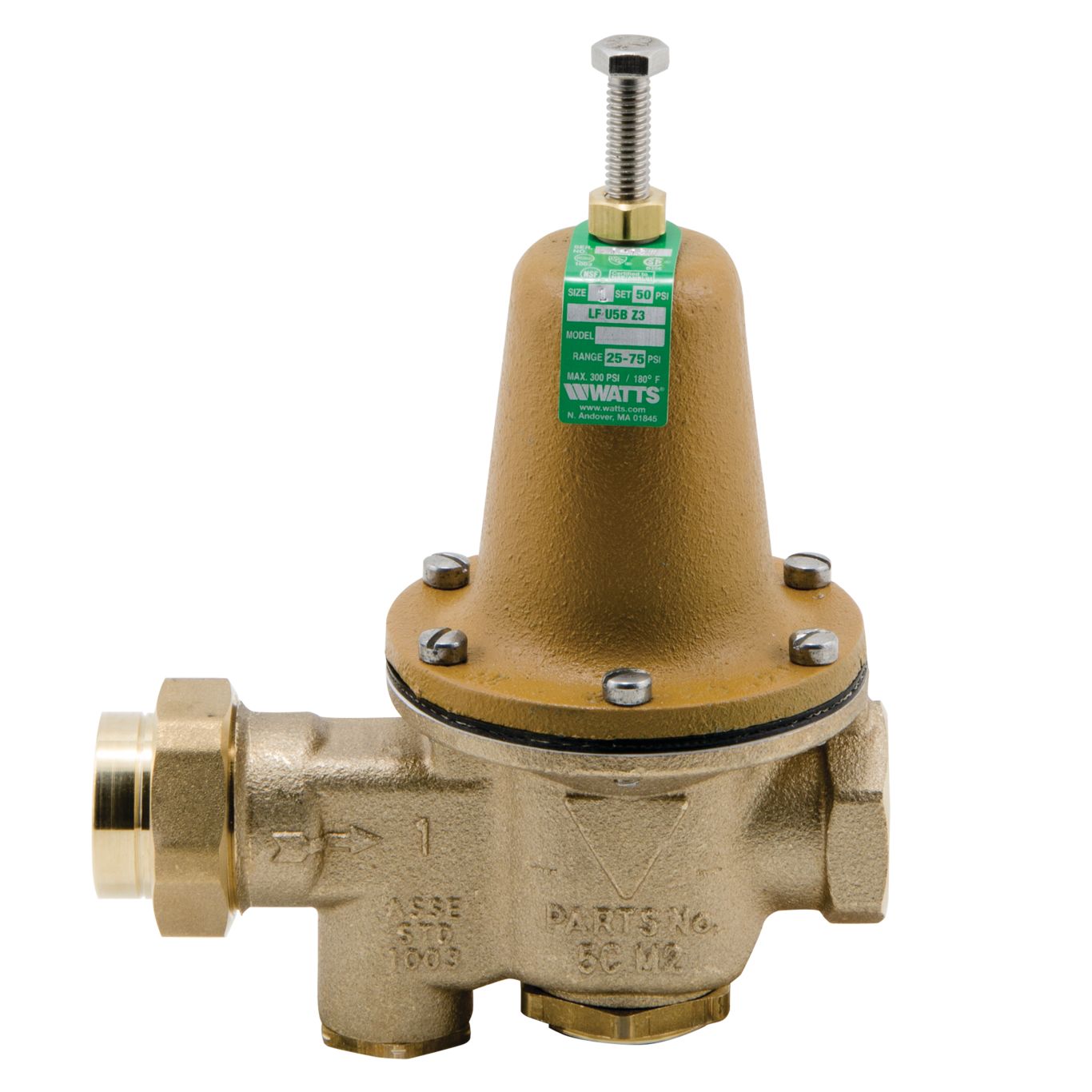

This Watts 0009107 - LFU5B-HP-Z3 1/2" lead free brass high performance water pressure reducing valve is equipped for high pressure ranges. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications.

Product Features:

• The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure
• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• High pressure range is 75-100 psi (518 to 690 kPa) with the standard setting at 90 psi (621 kPa)
• Serviceable in line without special tools
• High pressure applications
• 1/2" NPT threaded female union inlet by NPT female outlet
• Integral stainless steel strainer removable for cleaning
• SKU: 0009107
• Model: LFU5B-HP-Z3-1/2

Product Specs:

• Product Specifications
• Product Brochure
• Installation Instructions
• Manufacturer Page
