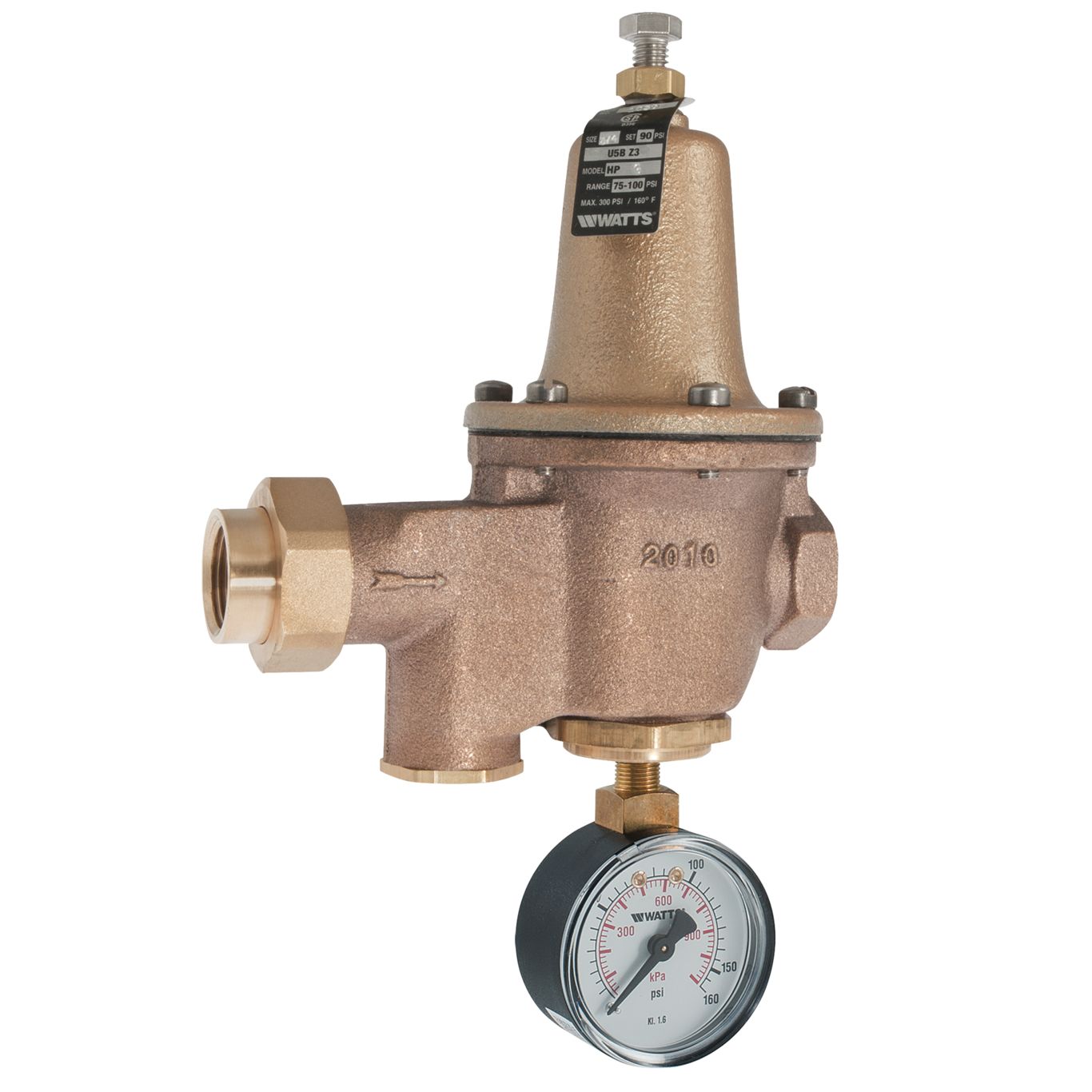

Watts 0009105 - LFU5B-GG-Z3 1/2" Lead Free High Performance Water Pressure Reducing Valve with Gauge Tapping and 160 PSI Gauge Included

Ships in 2-3 days (Free Shipping)

Watts 0009105 - LFU5B-GG-Z3 1/2" Lead Free High Performance Water Pressure Reducing Valve with Gauge Tapping and 160 PSI Gauge Included.

This Watts Watts 0009105, LFU5B-GG-Z3 1/2" lead free high performance water pressure reducing valve is equipped with gauge tapping and a 160 psi (11.0 bar) gauge. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).

Product Features:

• Integral stainless steel strainer removable for cleaning
• Gauge tapping and gauge
• High temperature resistant reinforced diaphragm for hot water
• Sealed spring cage with stainless steel cage screws
• The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure
• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• Suitable for up to 300 psi (20.7 bar)
• The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa)
• Standard pressure setting at 50 psi (345 kPa)
• SKU: 0009105
• Model: LFU5B-GG-Z3-1/2
