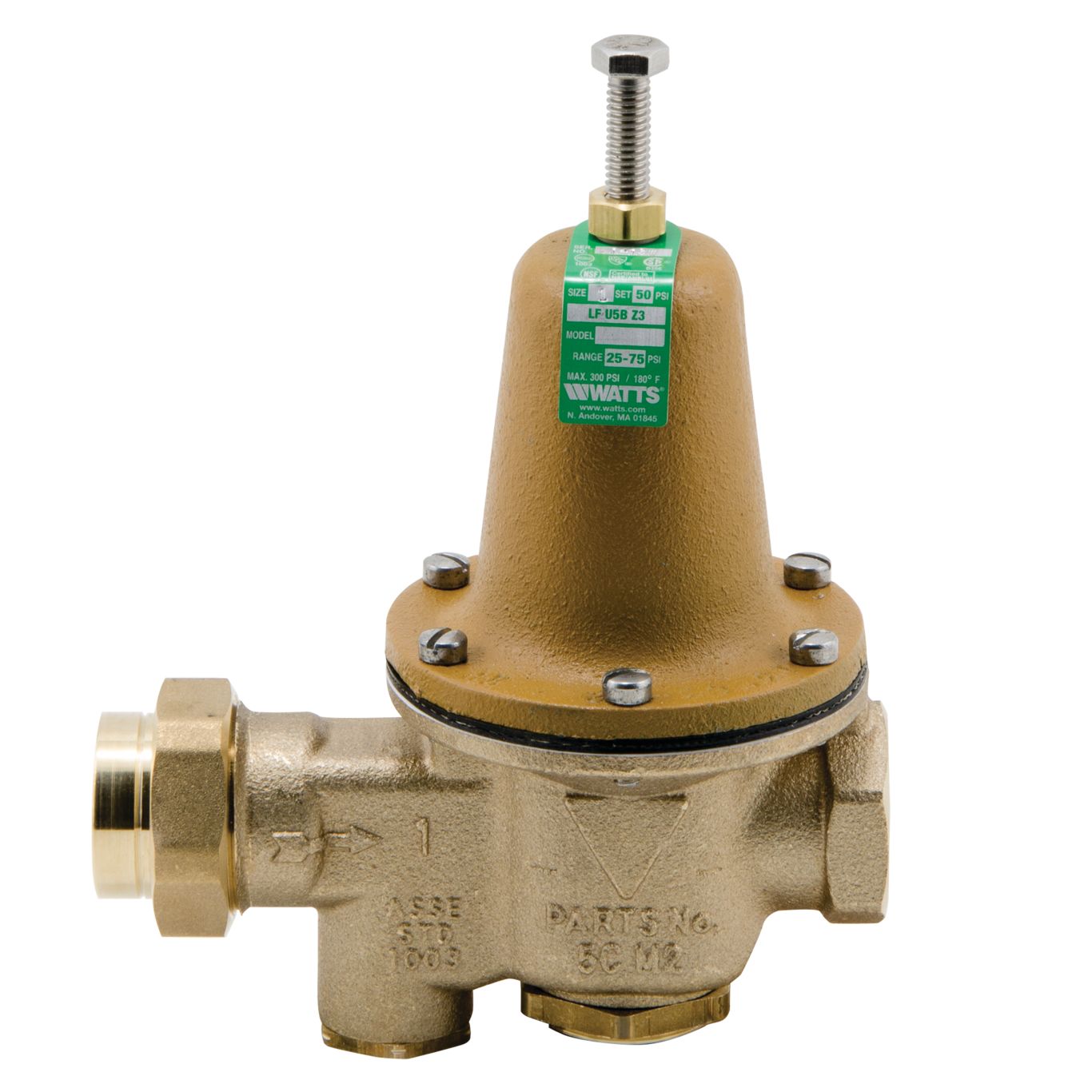

Watts 0009101 - LFU5B-G-Z3-1/2 - 1/2" Lead Free Water Pressure Reducing Valve With 1/2" NPT Female Union X 1/2" NPT Female End Connections, Adjustable Pressure Range 25-75 PSI, Gauge Tapping

This Watts 0009101, LFU5B-G-Z3 1/2 inch lead free brass high performance water pressure reducing valve is equipped with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).

Product Features:

• Serviceable in line without special tools
• Sealed spring cage with stainless steel cage screws
• Integral stainless steel strainer removable for cleaning
• High temperature resistant reinforced diaphragm for hot water
• The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure.
• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• Suitable for up to 300 psi (20.7 bar)
• The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa)
• SKU: 0009101
• Model: LFU5B-G-Z3-1/2

Product Specs:

• Installation Instructions
• Product Brochure
• Specification Sheet
• Manufacturer Page
