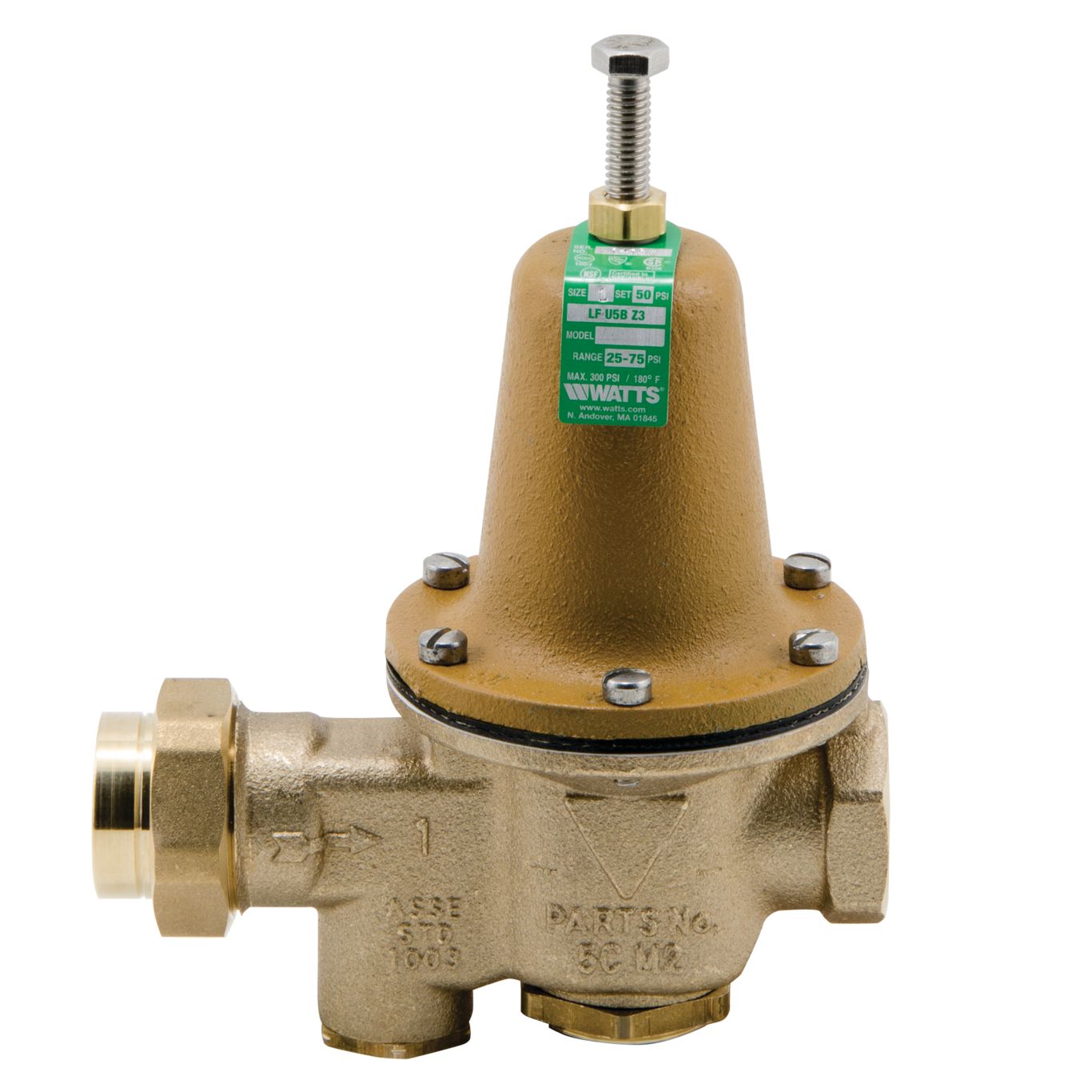

Watts 0009100 - LFU5B-Z3-1/2 - 1/2" Lead Free Water Pressure Reducing Valve With 1/2" NPT Female Union X 1/2" NPT Female Ends, Adjustable Pressure Range 25-75 PSI

Ships in 1-2 days (Free Shipping)

Watts 0009100 - LFU5B-Z3-1/2 - 1/2" Lead Free Water Pressure Reducing Valve With 1/2" NPT Female Union X 1/2" NPT Female Ends, Adjustable Pressure Range 25-75 PSI.

This Watts 0009100 - LFU5B-Z3 1/2 inch lead free high performance water pressure reducing valve with a lead free cast copper silicon alloy body is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).

Product Features:

• The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure
• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). Suitable for up to 300 psi (20.7 bar)
• The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa).
• 1/2" NPT threaded female union inlet by NPT female outlet
• Sealed spring cage with stainless steel cage screws
• Serviceable in line without special tools
• Integral stainless steel strainer removable for cleaning
• SKU: 0009100
• Model: LFU5B-Z3-1/2

Product Specs:

• Installation Instructions
• Product Brochure
• Specification Sheet
• Manufacturer Page
