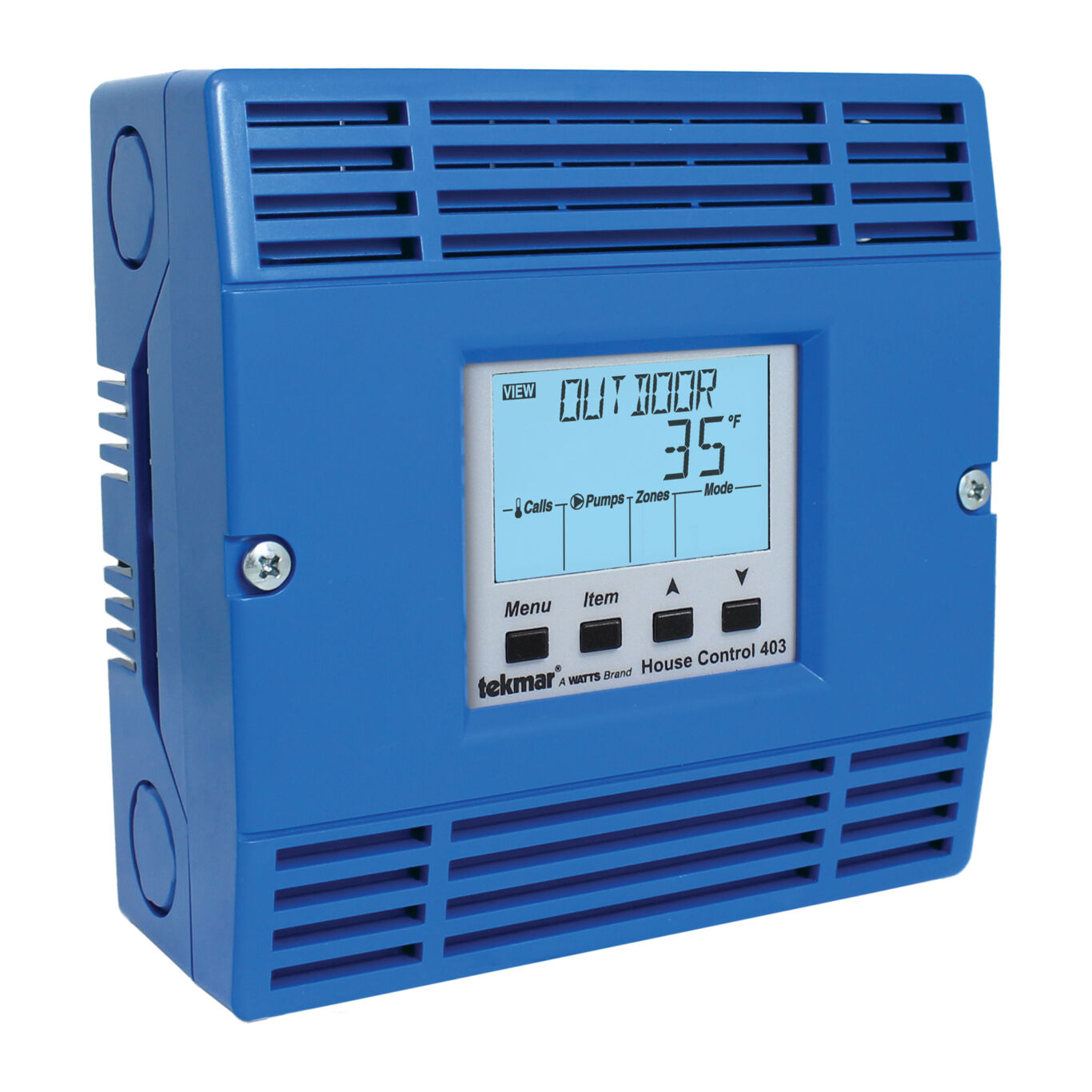

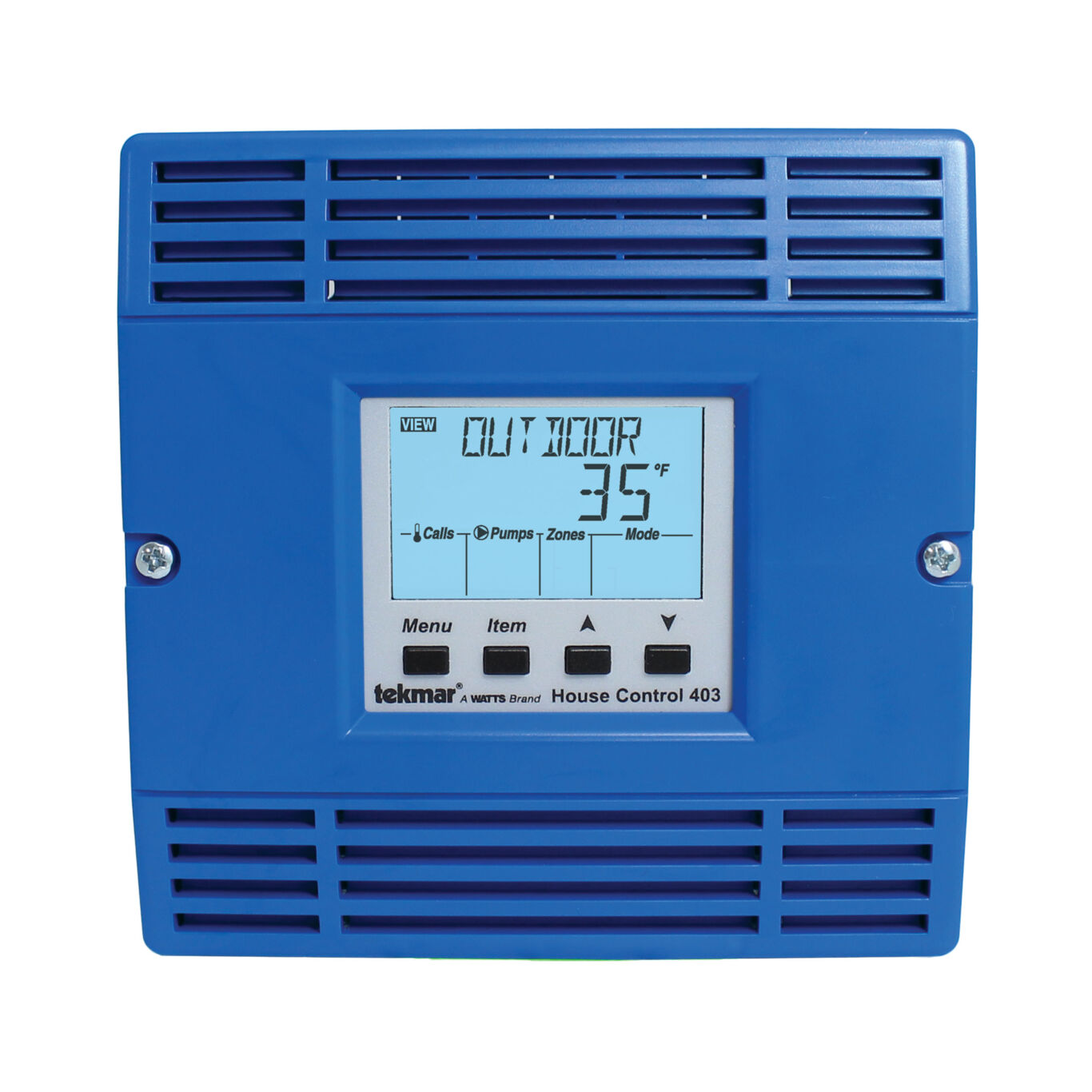

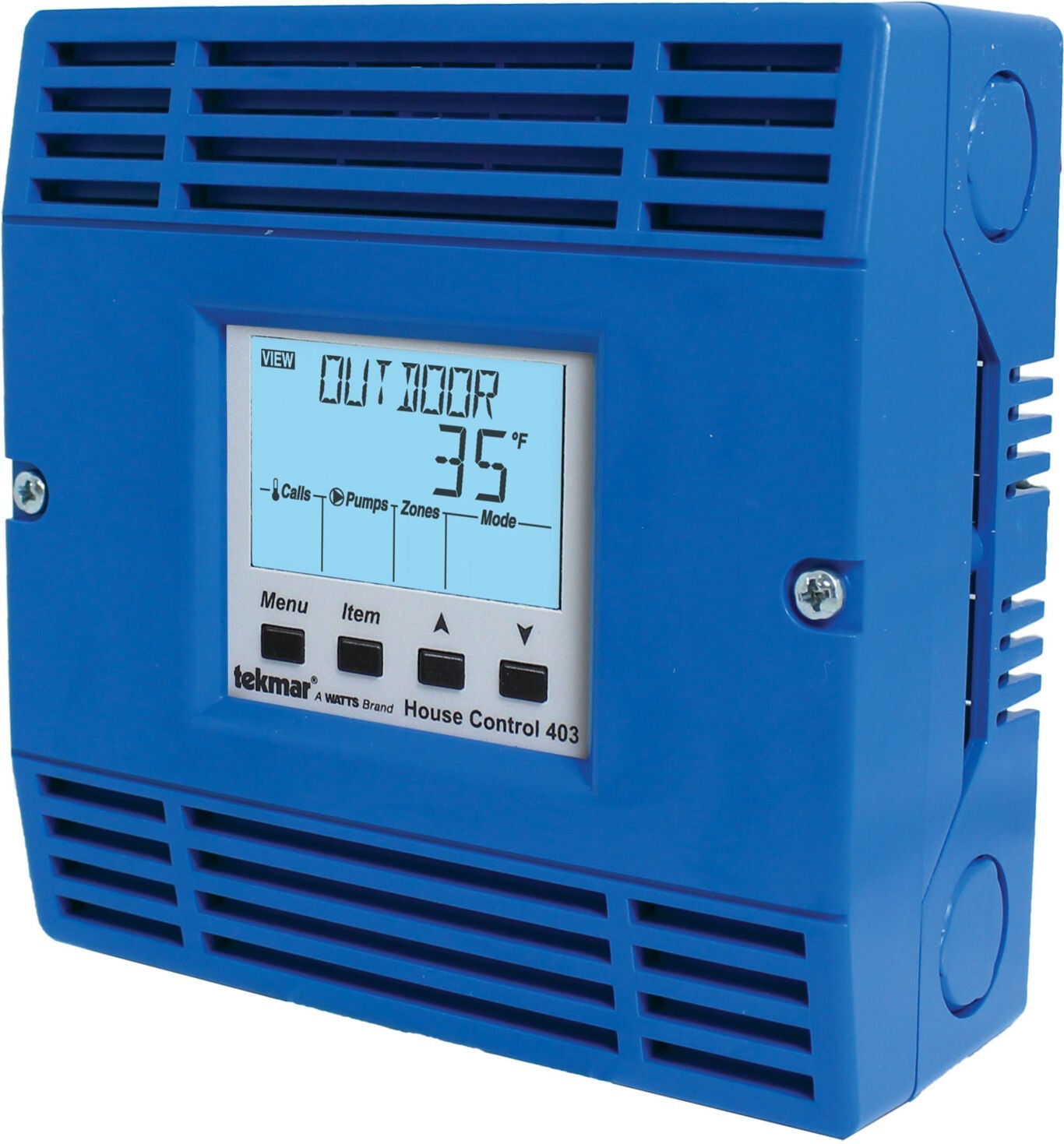

Tekmar 403 tN2 House Control, Boiler, DHW and Setpoint, Mixing, Four Zone Pumps
Tekmar 403 tN2 House Control, Boiler, DHW and Setpoint, Mixing, Four Zone Pumps
Couldn't load pickup availability
Ships in 2-3 days (Free Shipping)
Tekmar 403 tN2 House Control, Boiler, DHW and Setpoint, Mixing, Four Zone Pumps.
This Tekmar 403 tekmarNet® 2 House Control is designed to operate all of the mechanical equipment in a residential hydronic heating system, coordinating their operation through network communication. It can be used in applications ranging from a single zone of baseboard with an on/off boiler, to multiple fan coils, mixed radiant floor heating zones, and a modulating/condensing boiler. This control regulates up to two heating water temperatures through Outdoor Temperature Reset and Indoor Temperature Feedback. It is capable of controlling a single on/off, two stage, or modulating boiler, a mixing device, Domestic Hot Water, setpoint loads, 4 on-board zone pumps, and can expand up to 24 zones in total for each space heating water temperature.
Product Features:
- Only requires 2 Wires Per Zone, Four 115 V (ac) powered zone outputs
- DHW priority (optional), setpoint operation
- Warm weather shut down, zone synchronization
- DHW post purge, DHW control
- For use with tekmarNet® 2 thermostats only, tN4 expansion terminals
- Exercising, boiler protection
- Variable speed, floating action, or proportional mixing control, automatic boiler differential
- Expandable up to 48 zones, single on/off, two stage, or modulating boiler control
- Outdoor temperature reset, indoor temperature feedback
- SKU: Tekmar 403
Product Specs:
