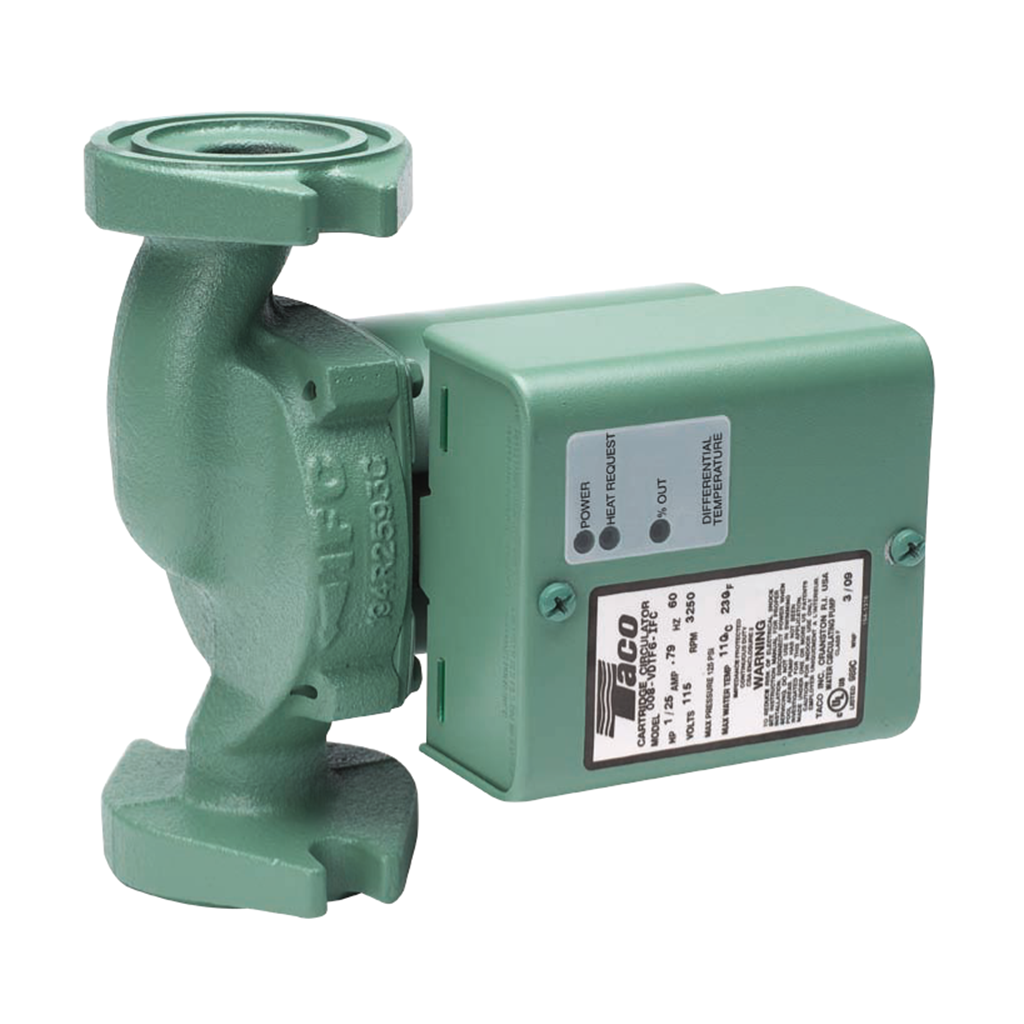

Taco 009-VDTF5 - Series 009 Flanged Variable Speed Delta-T Cast Iron Circulator Pump, 1/8 HP, 115V

Ships in 1-2 days (Free Shipping)

Taco 009-VDTF5 - Series 009 Flanged Variable Speed Delta-T Cast Iron Circulator Pump, 1/8 HP, 115V.

This Taco 009-VDTF5 is a variable speed Delta-T circulator pump. Its all-in-one design combines a microprocessor based variable speed differential controller with the reliability and convenience of "00" Cartridge Circulators. Simply dial in the design Delta-T of the system or zone (from 5-50°F) and then sit back and watch the circulator automatically adjust its performance to match the systems ideal BTU/hr output, while conserving energy and eliminating velocity noise.

Product Features:

• Plug-in low voltage wiring terminal
• Optional Integral Flow Check (IFC)
• Increases system efficiency
• Pump always runs at minimum required speed
• Eliminates velocity noise
• Eliminates need for a pressure by-pass valve
• Conserves energy
• Achieves system design goals, even when installed system varies from original design
• Pump automatically adjusts to current system conditions
• Spend less time figuring out pressure drop (for proper pump sizing) when servicing existing systems
• Pump exercise
• Delivers ideal BTU/hr heat transfer for all styles of emitters
• Cast iron construction
• All-in-one pump & control
• Sensors included
• Easy to install: attach 2 Sensors, dial in the Desired Delta-T
• UL Approved
• Snap-in PC board, replaceable
• LED status panel
• Fuse protected
• SKU: Taco 009-VDTF5

Product Specs:

• Specification Sheet
• Performance Curve
• Pump Brochure
• Installation Instructions
• Manufacturer Page
