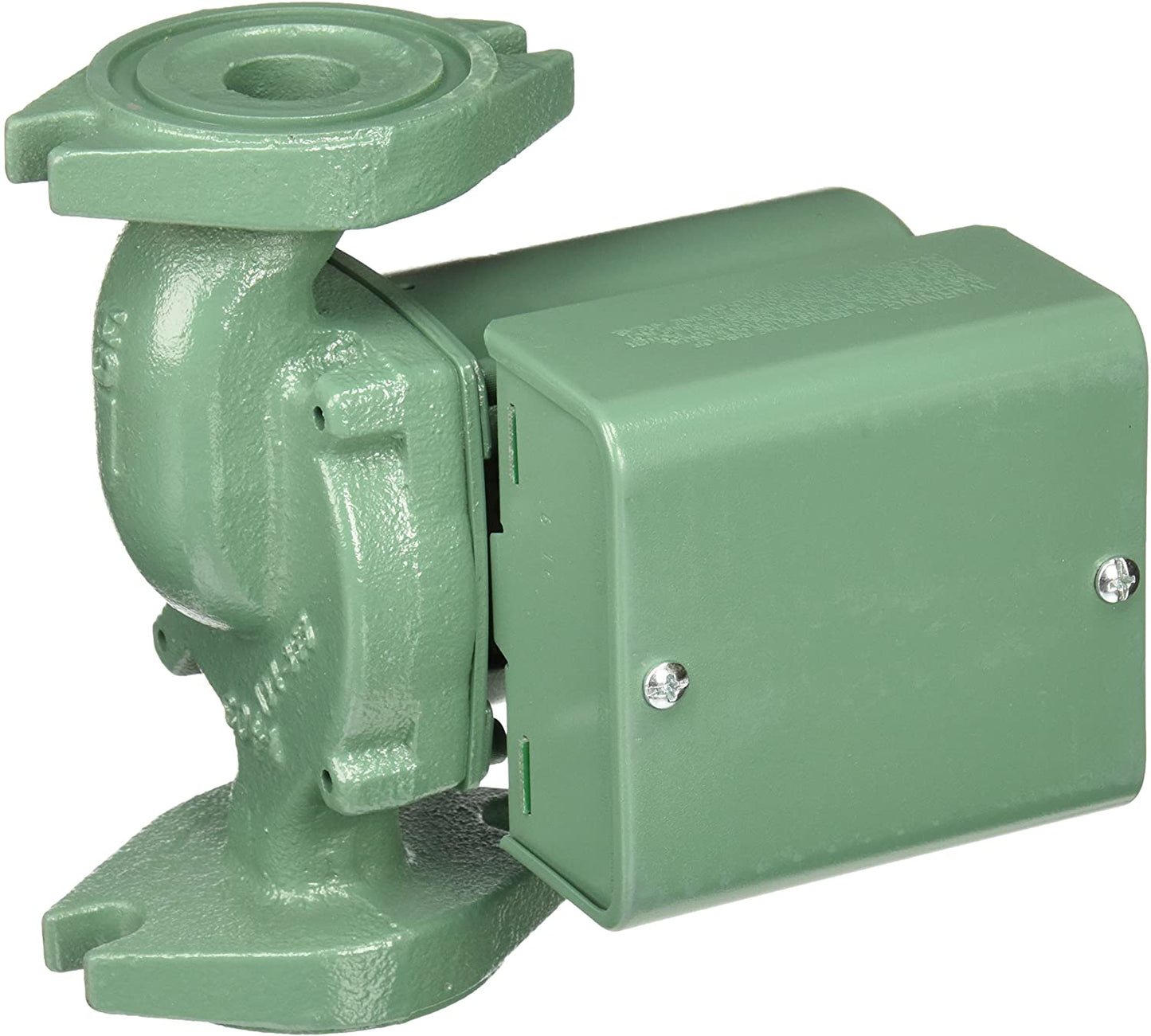

Taco 007-ZF5-10 - 007 Series Cast Iron Priority Zoning Circulator Pump 1/25 HP, 115V, 125 Max.PSI

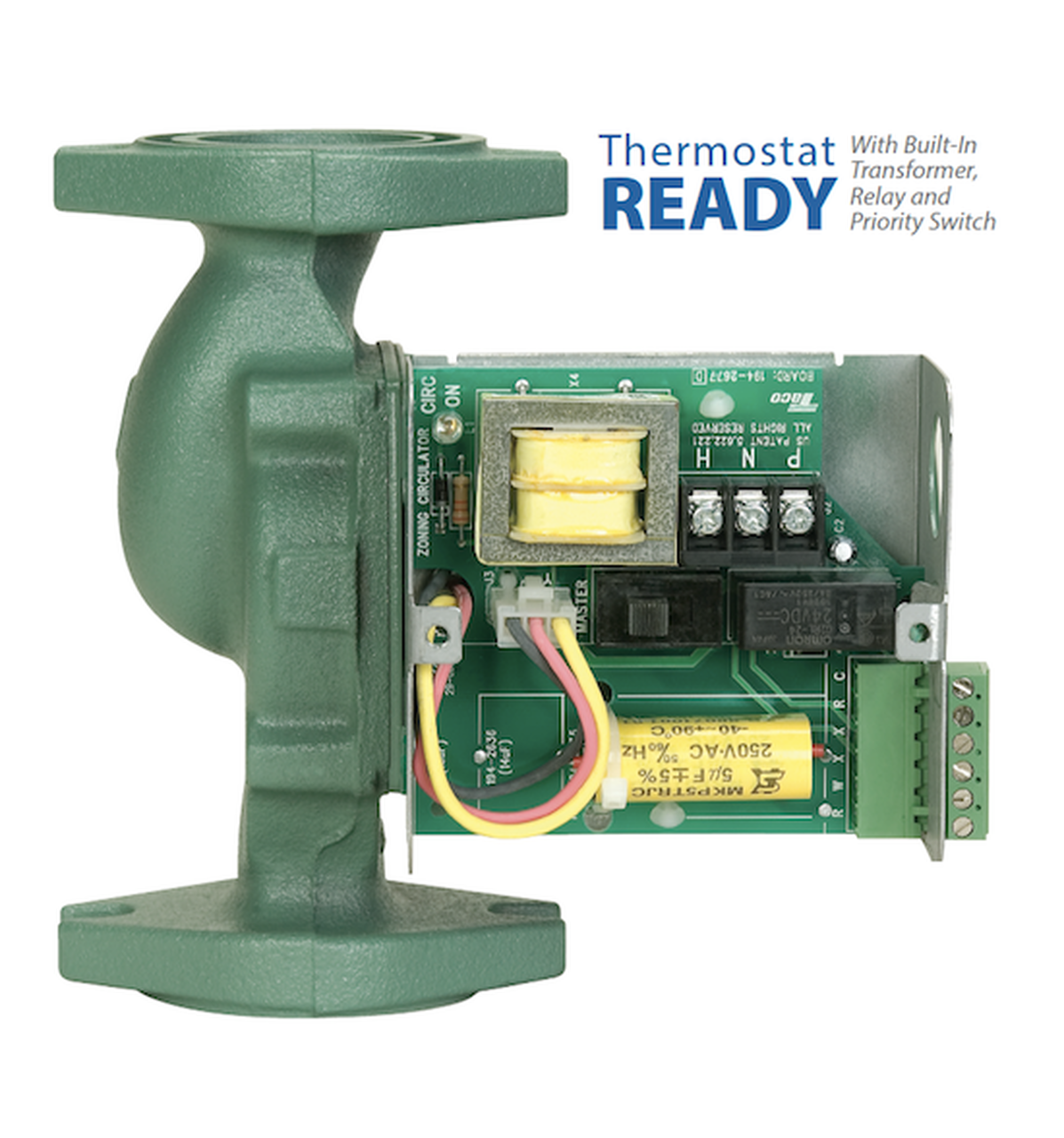

This Taco 007-ZF5-10 Cast Iron Priority Zoning Circulator with Rotated Flange, 1/25 HP. The patented Taco Priority Zoning Circulator combines the reliability of the 00® circulator with the convenience and efficiency of a switching relay. With a built-in transformer, relay and priority switch, all the wiring is done directly to the circulator’s PC board, making it ideal for adding a zone or an indirect hot water heater

Ideal Application:

• Indirect Hot Water Heaters
• Adding Zones
• Zoning with Circulators
• Prioritizing Under-Sized Zones

Product Features:

• Universal Thermostat Compatibility, Thermostat Ready
• Can be used in conjunction with other circulators or zone valves
• Available in a full range of sizes from 003-0014
• 00 Reliability
• Snap-In PC Board
• Low and High Voltage Strips
• Removable low-voltage terminal strip simplifies wiring installation
• LED Power Light
• UL and CSA Listed
• 100% Factory Tested
• Made in USA
• SKU: Taco 007-ZF5-10

Pump Performance:

• Material: Cast Iron
• Amperage: 0.71
• Application: Heating
• Voltage: 115v
• Max Pressure (PSI): 125
• Horse Power: 1/25
• Connection Size: 3/4", 1", 1-1/4", 1-1/2"
• Flow Range (GPM): 0-23
• Max Flow (GPM): 23
• Max Head (Ft): 10
• Head Range (ft.): 0-10
• Hertz: 60
• Phase: 1
• RPM: 3250
• Temperature Range (F): 40°F - 240°F
• Connection Type: Flanged x Flanged

Product Specs:

• Specification Sheet
• Installation Sheet
• Performance Curve
• Manufacturer Page
