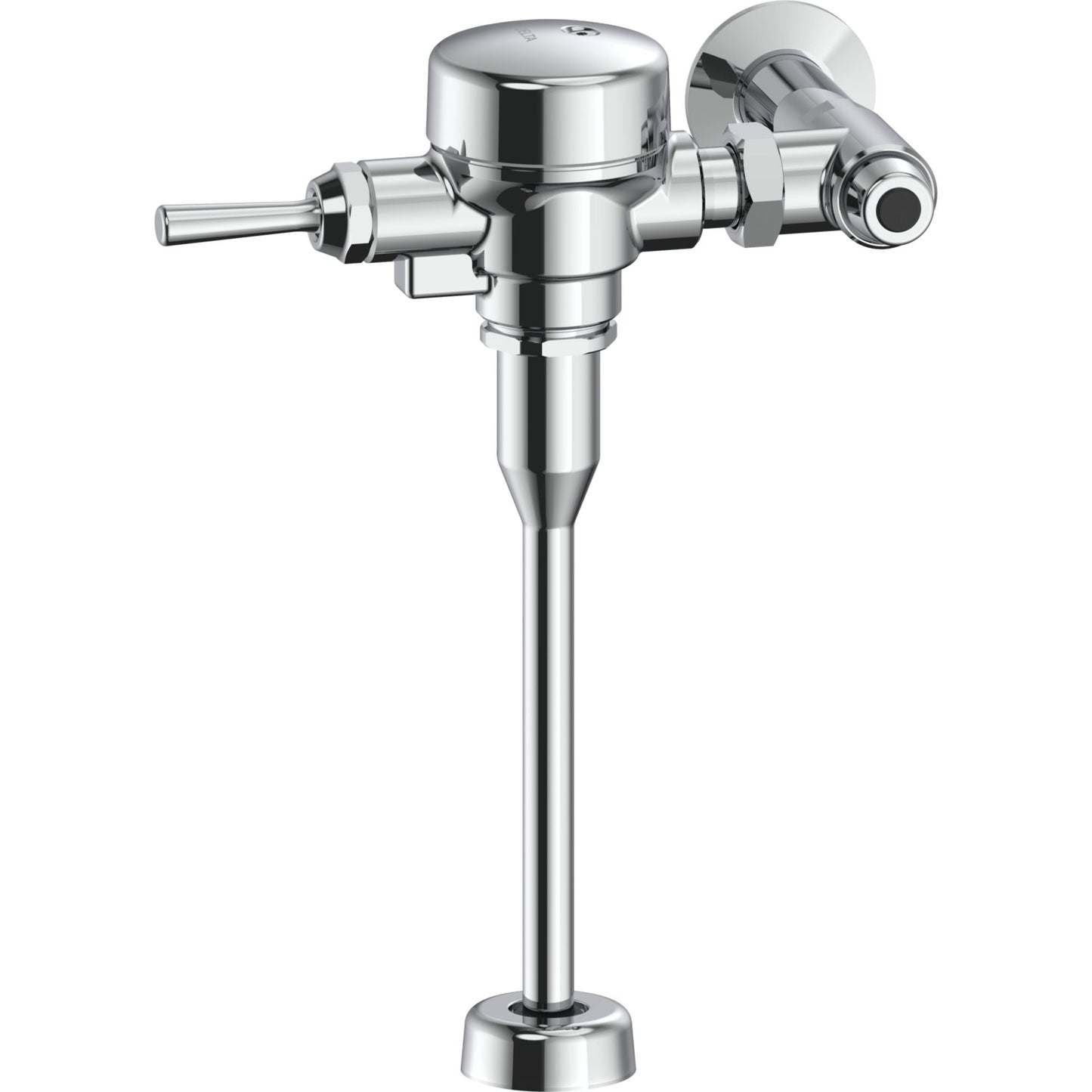

Delta 81T231-05 Teck Exposed Manual Urinal Flush Valve, 8 gpm, 3/4 in Spud, 25 psi, Chrome

Ships in 1-2 days

Delta 81T231-05 Teck Exposed Manual Urinal Flush Valve, 8 gpm, 3/4 in Spud, 25 psi, Chrome

Delta 81T231-05 Features:

• Quiet action, Teck® exposed diaphragm flush valve.
• Right or left-hand supply installation.
• Chloramine resistant diaphragm.
• Diaphragm retainer.
• Renewable seat.
• Vacuum breaker.
• For flushing urinals with 3/4 in top spud.
• Maximum 330 mm(13 in) from centerline of valve inlet to top of urinal.
• 1 in FIP or 3/4 in Copper sweat inlet adaptor for angle check stop with protecting cap.
• Adjustable 4-3/4 in +/- 7/16 in inlet/valve outlet centers.
• Cover tube, stainless steel wall flange.
• Factory set to 0.5 L (0.125 gal) - Not field adjustable.
• SKU: 81T231-05

Delta 81T231-05 Specifications:

• Spec Sheet (Series) - English
• Spec Sheet (Model Specific)
• PRODUCT Maintenance and Parts
• OPTIONS Maintenance Parts and Spec Sheets
