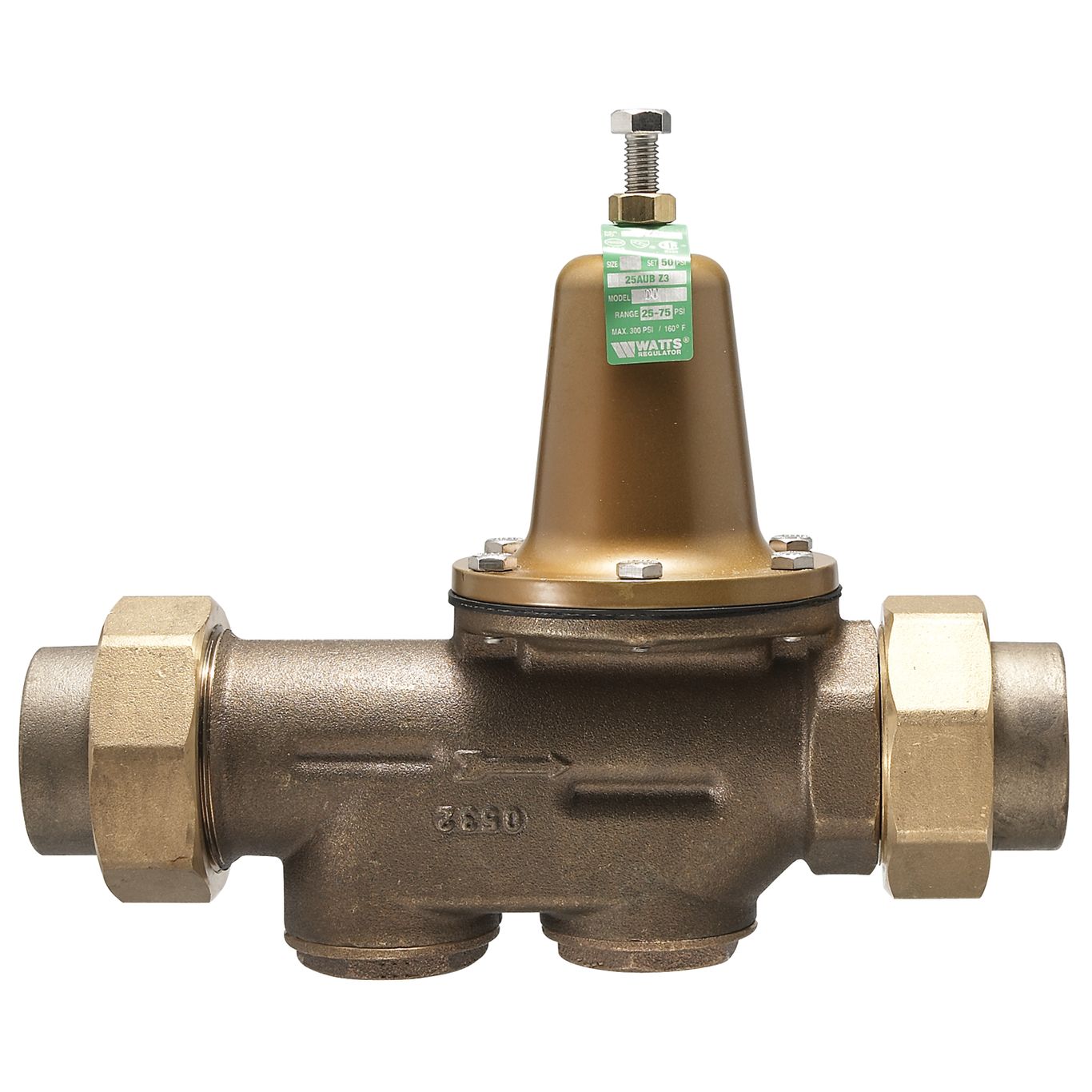

Watts 0009228 - LF25AUB-DU-Z3-1/2" Lead Free Water Pressure Reducing Valve with Double Union 1/2" NPT Threaded Female End Connections and Bypass Feature, Adjustable Pressure Range 25-75 PSI

Watts 0009228 - LF25AUB-DU-Z3-1/2" Lead Free Water Pressure Reducing Valve with Double Union 1/2" NPT Threaded Female End Connections and Bypass Feature, Adjustable Pressure Range 25-75 PSI

$640.00 CAD
$640.00 CAD
Sale Sold out
Shipping calculated at checkout.

Ships in 2-3 days (Free Shipping)

Watts 0009228 - LF25AUB-DU-Z3-1/2" Lead Free Water Pressure Reducing Valve with Double Union 1/2" NPT Threaded Female End Connection and Bypass Feature, Adjustable Pressure Range 25-75 PSI.

This Watts 0009228 LF25AUB-DU-Z3 1/2" lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications.

Product Features:

  • Sealed spring cage with stainless steel cage screws
  • Replaceable seat module
  • Integral stainless steel strainer removable for cleaning
  • Double unions, NPT threaded female inlet and outlet
  • The easy maintenance assembly consists of a replaceable seat module
  • 1/2" double union NPT threaded female inlet and outlet
  • With a bypass feature to control thermal expansion pressure
  • The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C)
  • Suitable for up to 300 psi (20.7 bar)
  • The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa)
  • With the standard setting at 50 psi (345 kPa)
  • SKU: 0009228
  • Model: LF25AUB-DU-Z3-1/2
