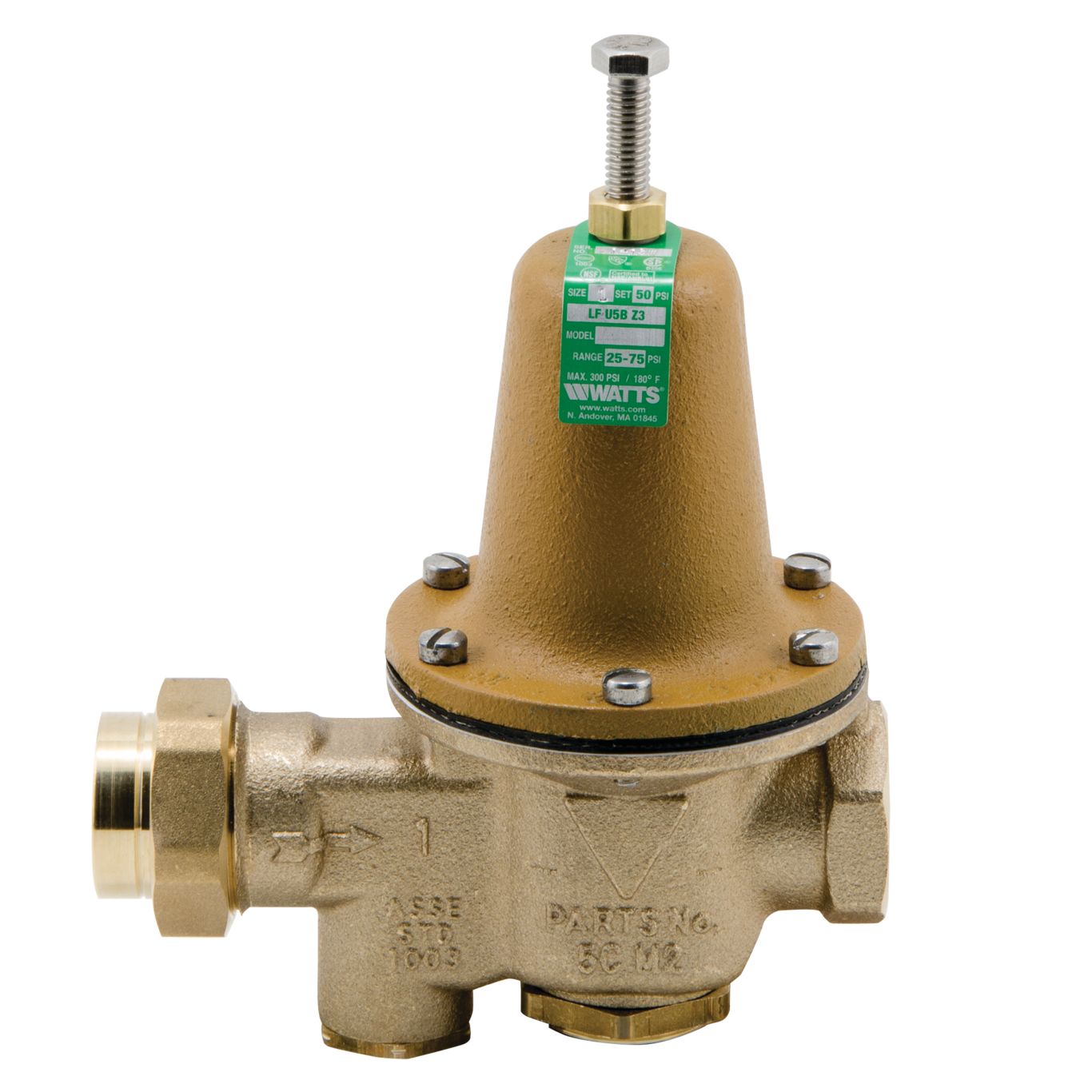

Watts 0009118 - LFU5B-Z3 3/4" Lead Free High Performance Pressure Reducing Valve with Bypass Feature, Adjustable Pressure Range 25-75 PSI

Ships in 1-2 days (Free Shipping)

Watts 0009118 - LFU5B-Z3 3/4" Lead Free High Performance Pressure Reducing Valve with Bypass Feature, Adjustable Pressure Range 25-75 PSI.

This Watts 0009118 - LFU5B-Z3 3/4" high performance water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications.

Product Features:

• Integral stainless steel strainer removable for cleaning
• Sealed spring cage with stainless steel cage screws
• Serviceable in line without special tools
• High temperature resistant reinforced diaphragm for hot water
• The easy maintenance assembly consists of a lead free cast copper silicon alloy body
• 3/4" NPT threaded female union inlet x NPT female outlet
• With a replaceable seat module
• With a bypass feature to control thermal expansion pressure
• The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C)
• Suitable for up to 300 psi (20.7 bar)
• The pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa) with the standard setting at 50 psi (345 kPa)
• SKU: 0009118
• Model: LFU5B-Z3-3/4
